B2B Connector Nano 21 - 2 pole
Article number:
46.142.U701-0
EAN:
4049853
Product information "B2B Connector Nano 21 - 2 pole"

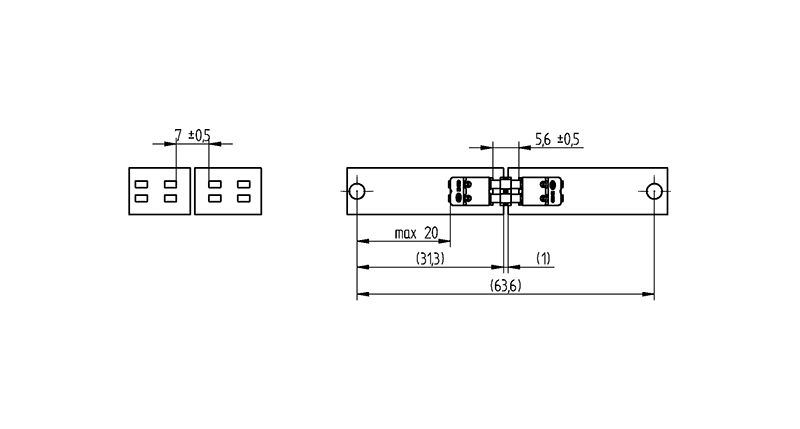

For use with SMD Terminal blocks Nano 46.141.1001 (1-pole) and 46.142.1001 (2-pole)

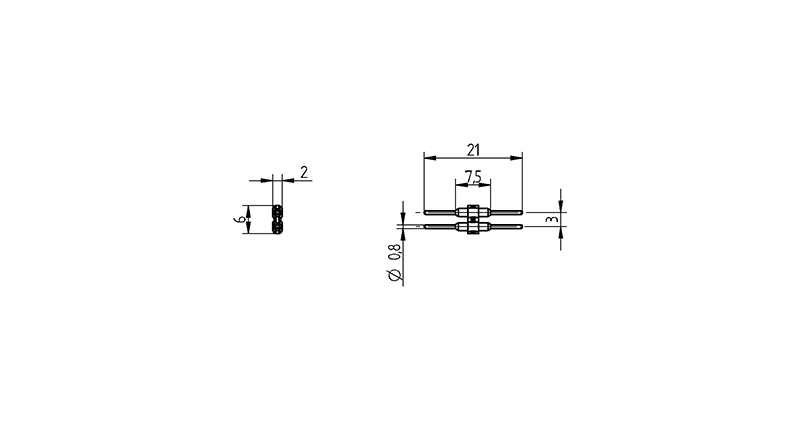

| Length: | 21 mm |
|---|---|
| Material: | Housing: PA 66 Pin: Brass, tin plated (CuZn 35) |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Number of poles: | 2 |
| Packaging quantity: | 1 |
| Producttype: | Nano SMD Terminal Blocks |
| ROHS REACH Information: | This product contains the following REACH SVHC substances:Lead in specific copper alloysFor more information, please refer to:https://www.bjb.com/en/Information-RoHS/REACH |
| Series: | Nano SMD Terminal Blocks |
| mounting method 1: | Snap fixing |
| old article number: | 46.142.U701.00 |
