Base for lamp module GH36d, code 5, 900mA, 32W
Article number:
32.920.3005-0
EAN:
4049853
Product information "Base for lamp module GH36d, code 5, 900mA, 32W"

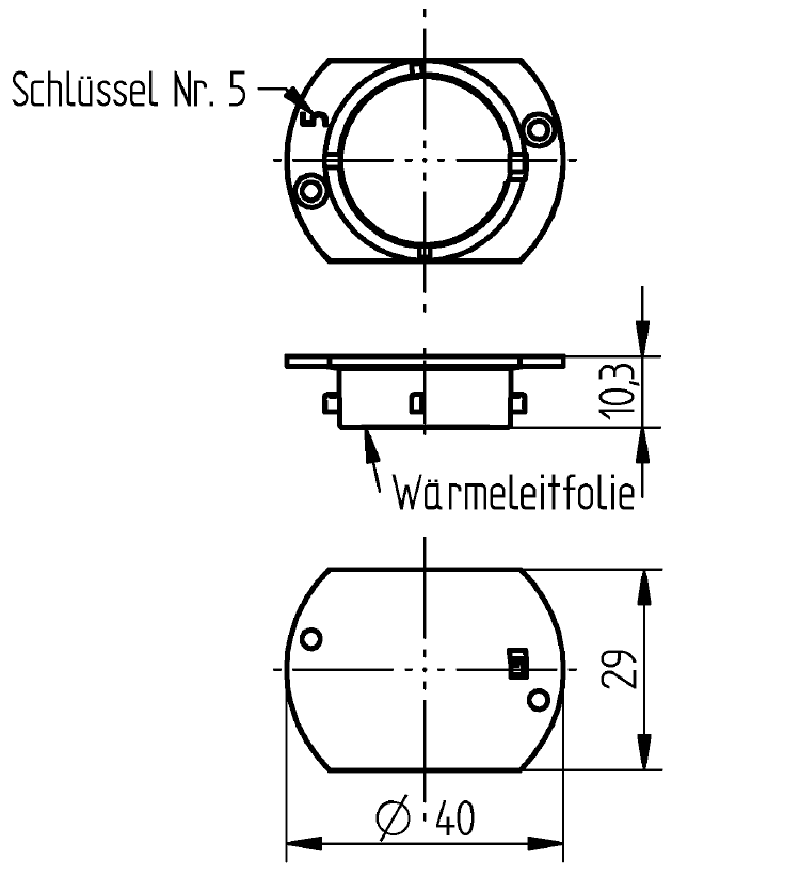

Alu-Base for Spot - Downlight Modules GH36d-5
- Twist and Lock System
- Maximum power depends on the respective heat sink, but max. 32 W.
- 2 countersunk screws D2.5x4 (32.920.E801) cross recess nickel-plated each for fastening the lower part to be ordered
| Diameter: | 40 mm |
|---|---|
| Key: | GH36d-5 |
| LED?: | 1 |
| Material: | Aluminium |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Other: | TIM between alu base and heat sink: graphite foil |
| Output: | Max. 25 W |
| Packaging quantity: | 1 |
| Producttype: | Lampholders and bases for GH36d LED Light Engines |
| Rated output current: | 900 mA |
| Screws: | for countersunk screws D2, 5 x4 |
| Series: | Lampholders and bases for GH36d LED Light Engines |
| Temperature: | max. 140°C |
| Weight: | 16 g |
| mounting method 1: | Screw fastening with M2 screws for attaching the aluminum base to the COB module |
| old article number: | 32.920.3005.36 |
