Base plate for receptacles 47.121.U30x.80 according to Zhaga Book 18 for application of sensor or communication units
Base plate for receptacles 47.121.U30x according to Zhaga Book 18 for application of sensor or communication units

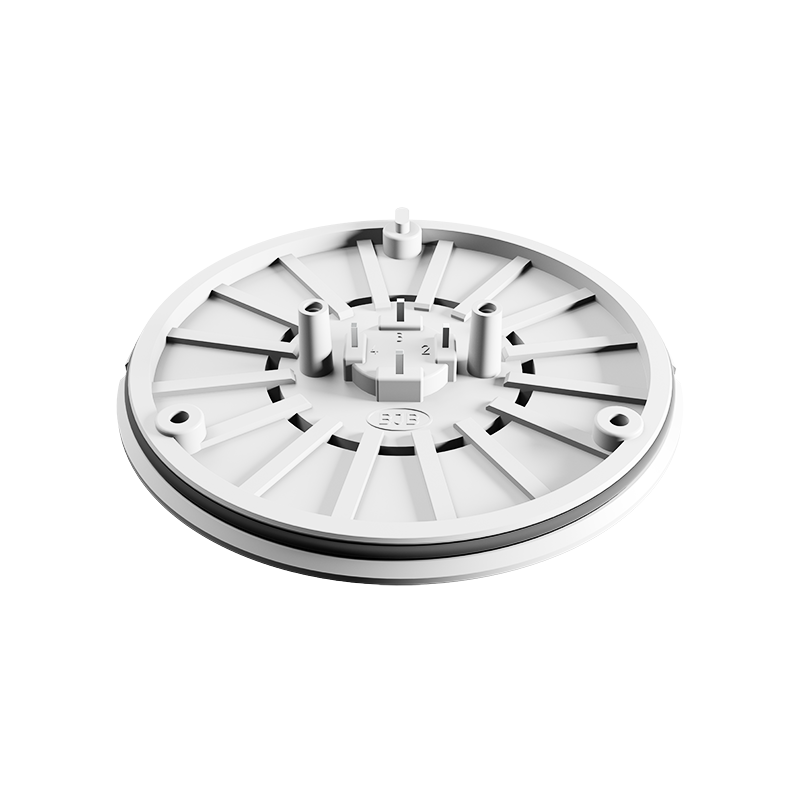

Top side of base plate:

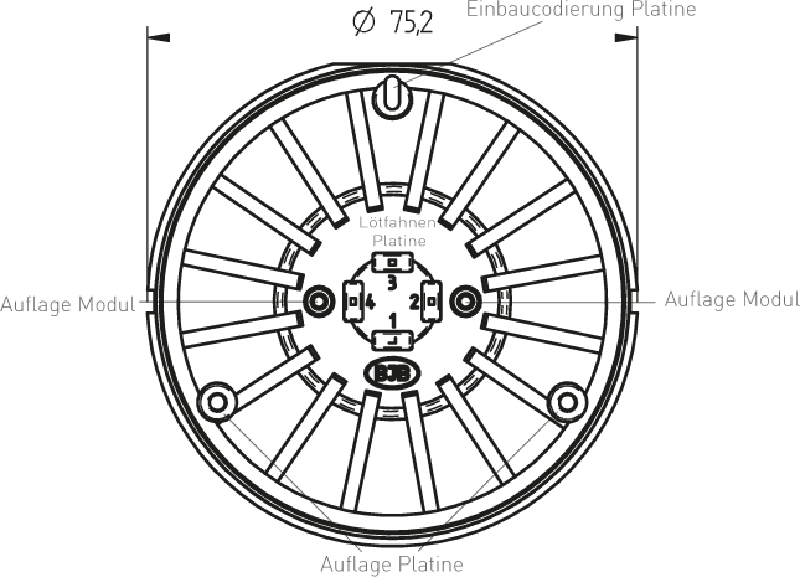

The top side of the base plate is provided with an assembly coding, contact surfaces and soldering lugs for a PCB. There are also contact surfaces for a module. (See drawing for details)
The module of the sensor or communication unit is placed on the soldering lugs and soldered.
Protection class IP 66 by combination with cover.
Additional features for use with covers:

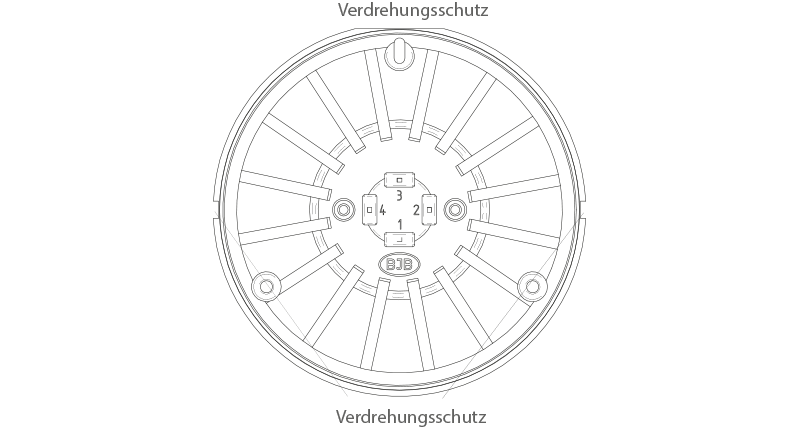

Twist protection for safe installation
Base plate bottom side:

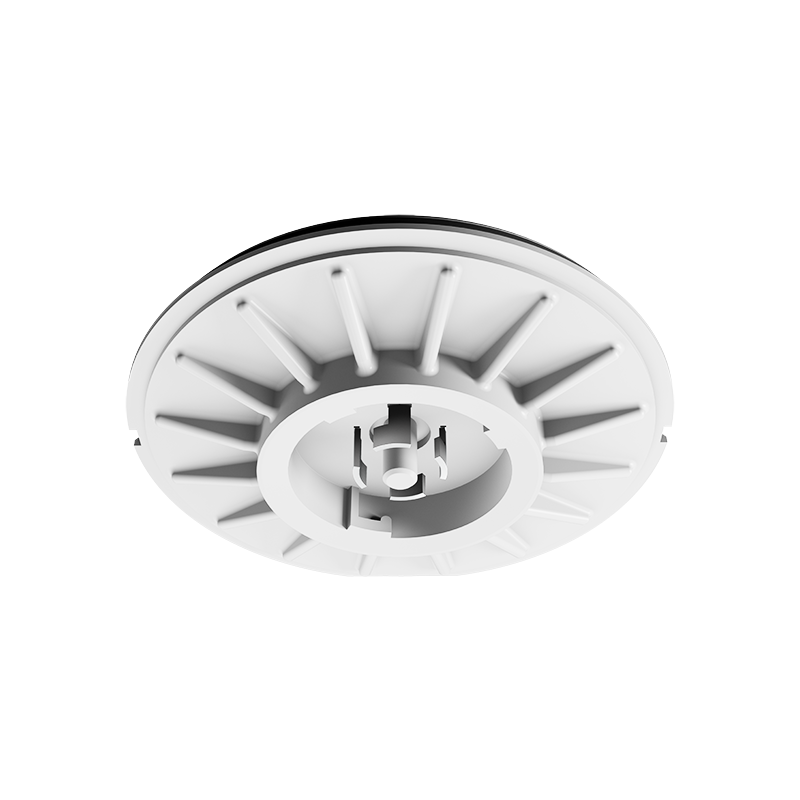

On the bottom side is a bayonet for mechanical connection with receptacle, as well as push-wire contacts for electrical connection.
The base plate is inserted into the receptacle, and both mechanical and electrical connection is ensured by means of a bayonet (Twist & Lock action).
Ausführung: | according to Zhaga Book 18 |
---|---|
Material: | PBT |
Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
Packaging quantity: | 50 |
Producttype: | Receptacle - the basis for outdoor light sensors |
Protection type: | IP 66 |
Series: | Receptacle - the basis for outdoor light sensors |
Weight: | 29 g |
mounting method 1: | bayonet (Twist & Lock action) |
old article number: | 47.921.U801.81 |
