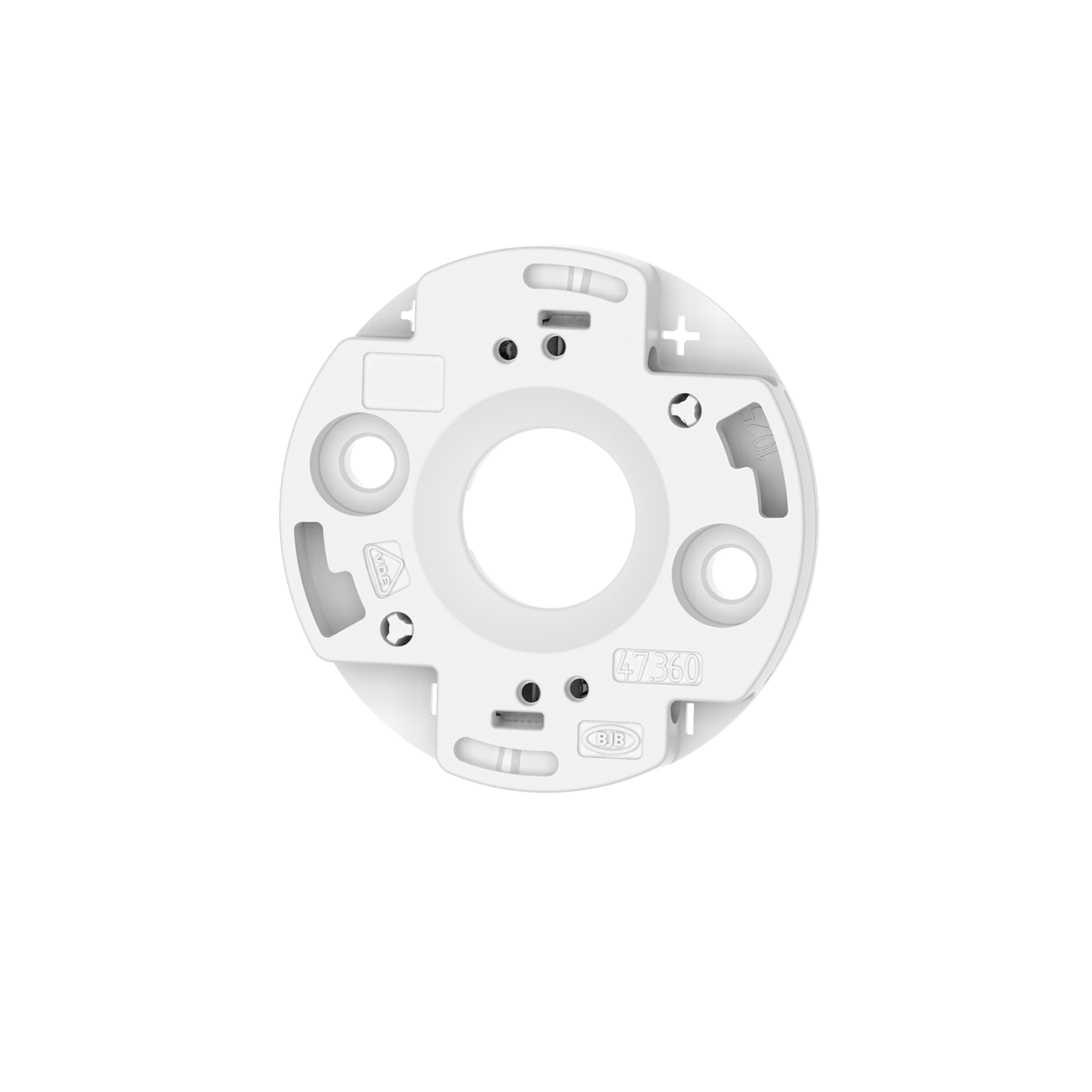

COB Connector Slim Ø35 LED array 13,5 x 13,5
Article number:
47.360.1025-0
-
-
-
0.35 - 0.5 mm², AWG 22 - 20 / max. 1.05 mm
-
0.35 - 0.5 mm², AWG 22 - 20 / max. 1.05 mm
-
8.0 + 1 mm
Product information "COB Connector Slim Ø35 LED array 13,5 x 13,5"
COB Connector 47.360
• Compact Design
• High-Strength Housing
• Durable Contacts
• Flexible Connectivity
• COB Pre-fixation
• Accessory Integration
• Clear Markings
Polarity of LED must be observed Specifications of LED manufacturer must be observed cURus: For limited applications
| Conductor cross-section: | Solid wires: 0.35 - 0.5 mm², AWG 22 - 20 / Stranded, tinned wires: 0.35 - 0.5 mm², AWG 22 - 20 / max. 1.05 mm |
|---|---|

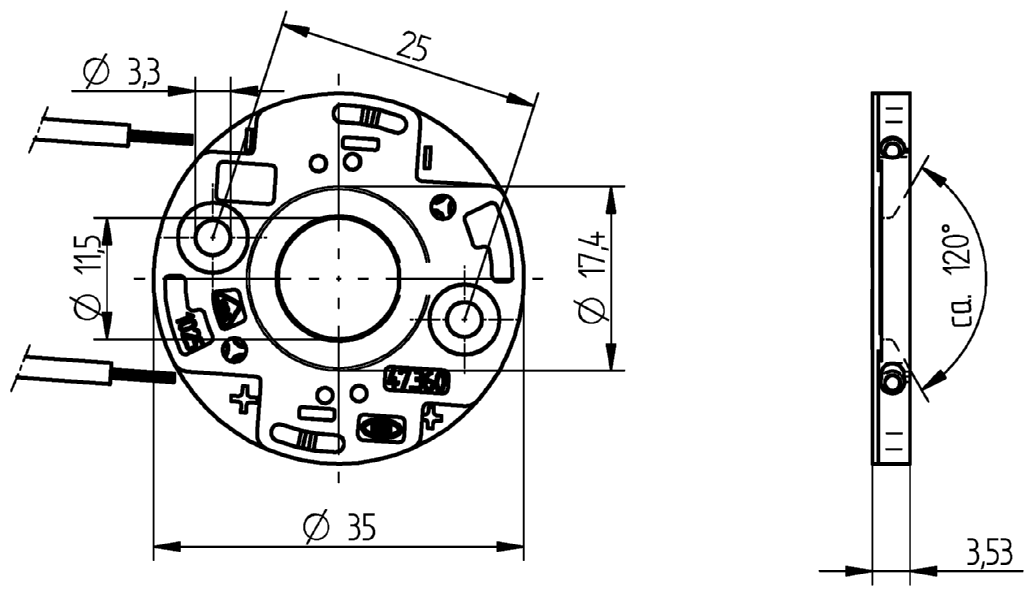

| Diameter: | Ø 35 mm |
| LED?: | intended for the use of COBs |
| LED Array: | 13.5 x 13.5 mm |
| Material: | Housing and Cover: PBTContacts: CuSn |
| Mounting cutout: | Integrated interface for reflectors |
| Operating current: | 3 A |
| Operating temperature: | -30 to +110°C |
| Operating voltage: | VDE (EN60838-1) 150 VdcUL (UL 8754) 60 Vdc |
| Packaging quantity: | 945 |
| Series: | COB Slim Connectors - 47.360 |
| Solid wires: | 0.35 - 0.5 mm², AWG 22 - 20 |
| Stranded, tinned wires: | 0.35 - 0.5 mm², AWG 22 - 20 / max. 1.05 mm |
| Weight: | 2,84 g |
| Wire length: | 8 +1 mm |
| mounting method: | Srew fixing M 3Alternative with P2F for blind holes: 28.902.E102-0 |
| old article number: | 47.360.1025.50 |
Available Downloads
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 47.360.1025-0 | cURus,_gültig_für_USA_und_Kanada-cURus_(USA_and_Kanada)3437952 | ||
| 47.360.1025-0 | ÜG_Überwachungsgutachten-Certificate_of_Conformity5663881 |
Suitable for the following LED types
| LED manufacturer | LED designation | More information |
|---|---|---|
| Bridgelux | DS412 V10 Gen. 8 | www.bridgelux.com |
-
-
-
0.35 - 0.5 mm², AWG 22 - 20 / max. 1.05 mm
-
0.35 - 0.5 mm², AWG 22 - 20 / max. 1.05 mm
-
8.0 + 1 mm
