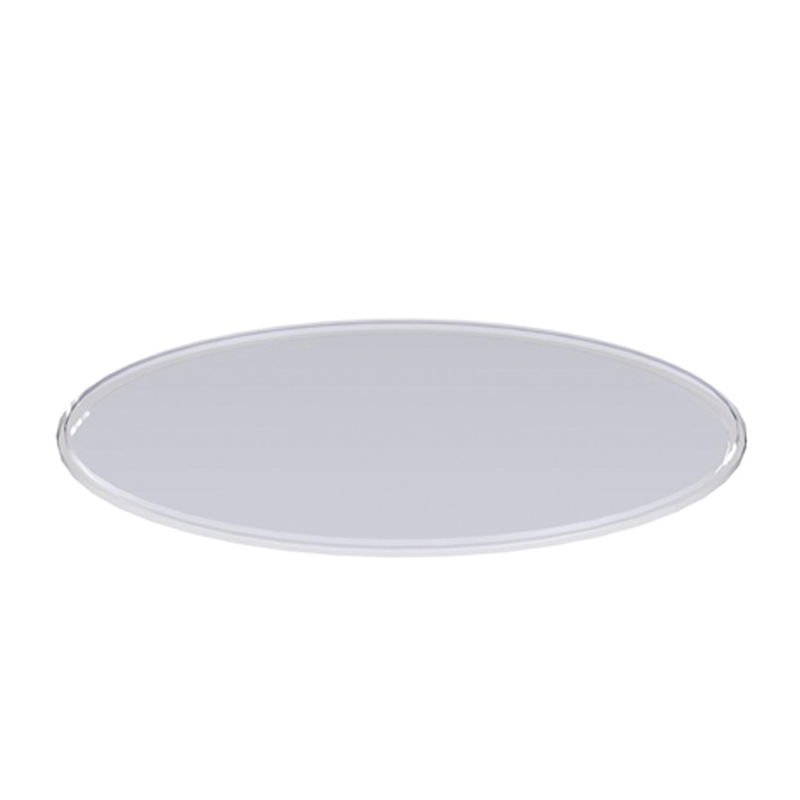

Cover plate for reflectors, Ø 74 mm
Cover Plate for use with reflectors with ø 74 mm

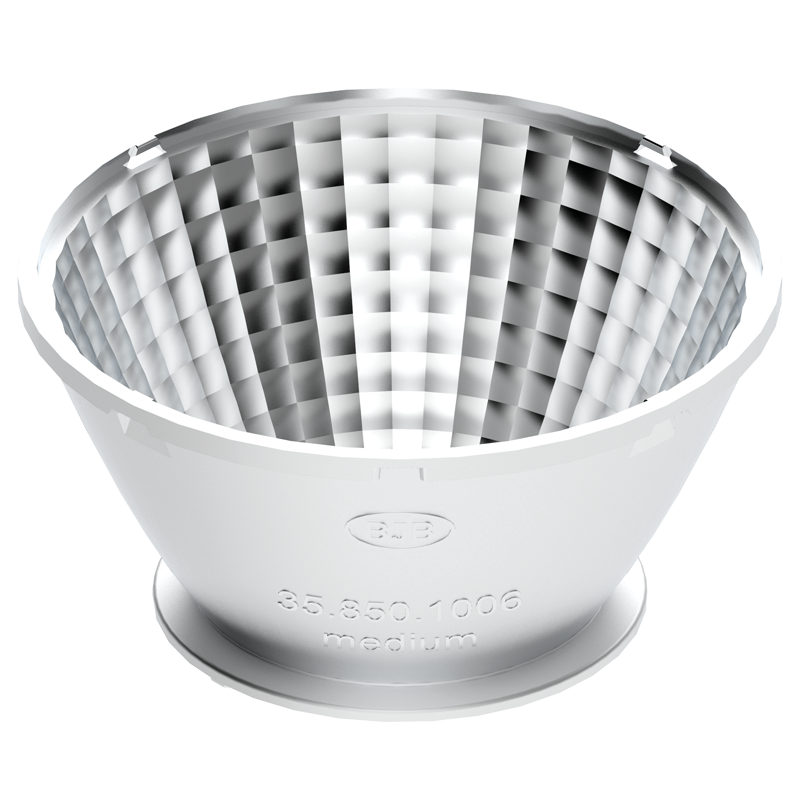

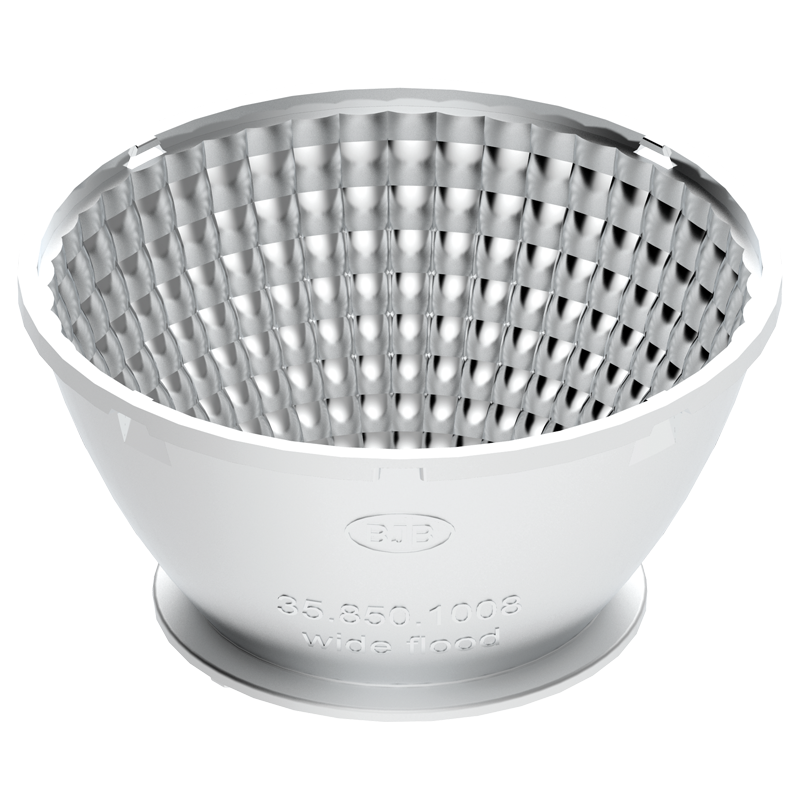

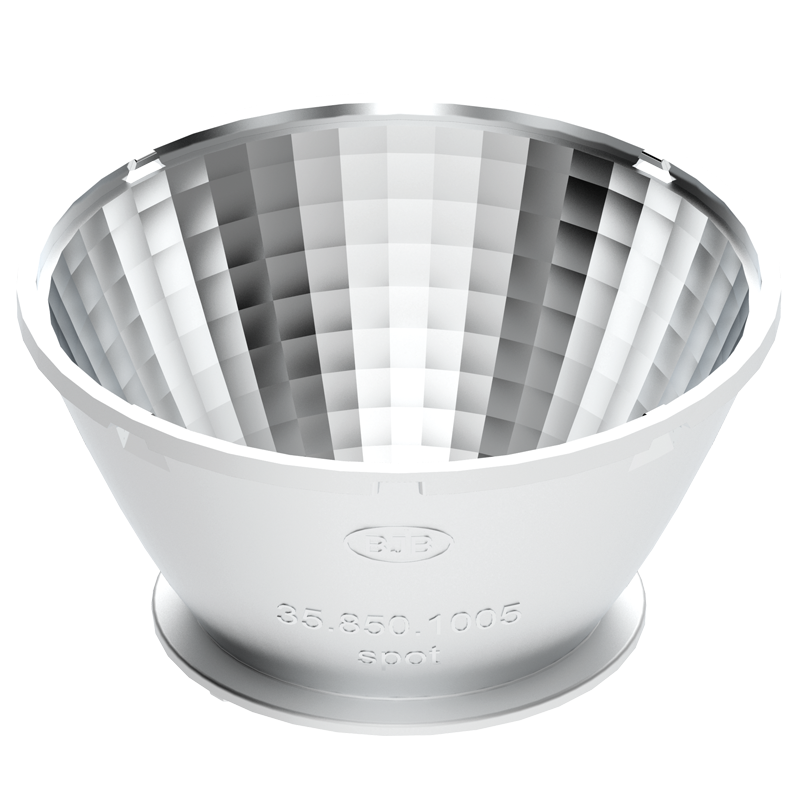

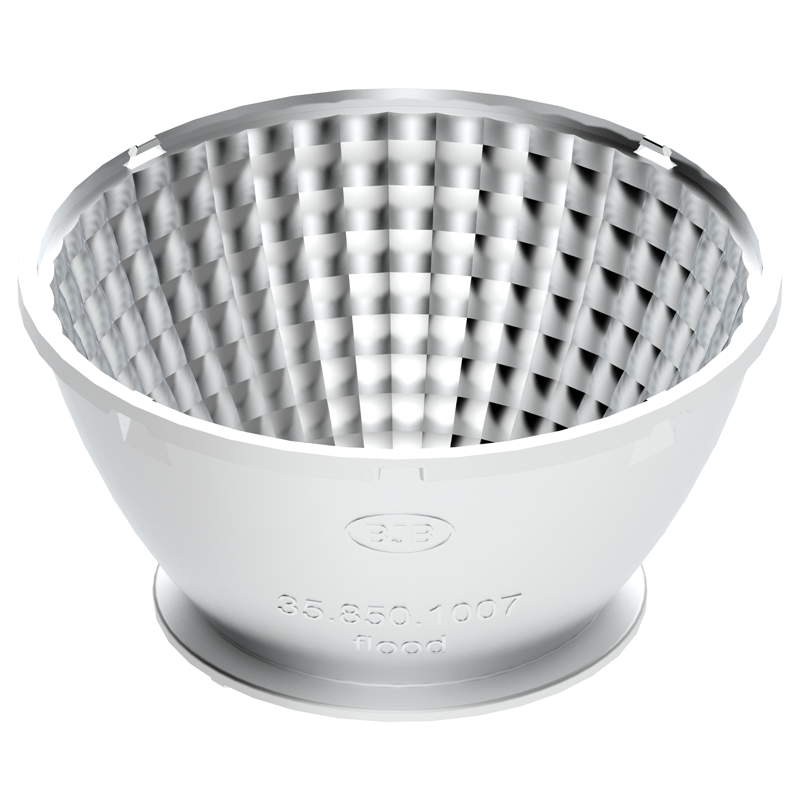

35.850.1005 - 1008
The following product properties are achieved by combining a cover plate with a reflector:
- Dust proof
- Insect protection
- Contact protection
- Reflector design visible
Light Distribution: | Wider light diffusion |
---|---|
Material: | PC, clear |
Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
Packaging quantity: | 300 |
Producttype: | OptiSpot Reflectors Ø 74 mm |
Series: | Reflectors Ø 74 mm for Spotlight Connectors Ø 50 mm |

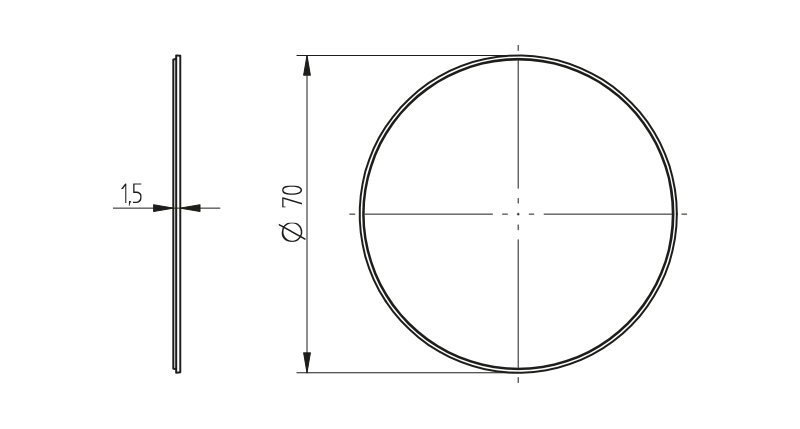

Thickness: | 1,5 mm |
mounting method 1: | Snap in fixing onto top side of the reflector by means ofsnap in hooks |
old article number: | 35.908.1006.85 |
