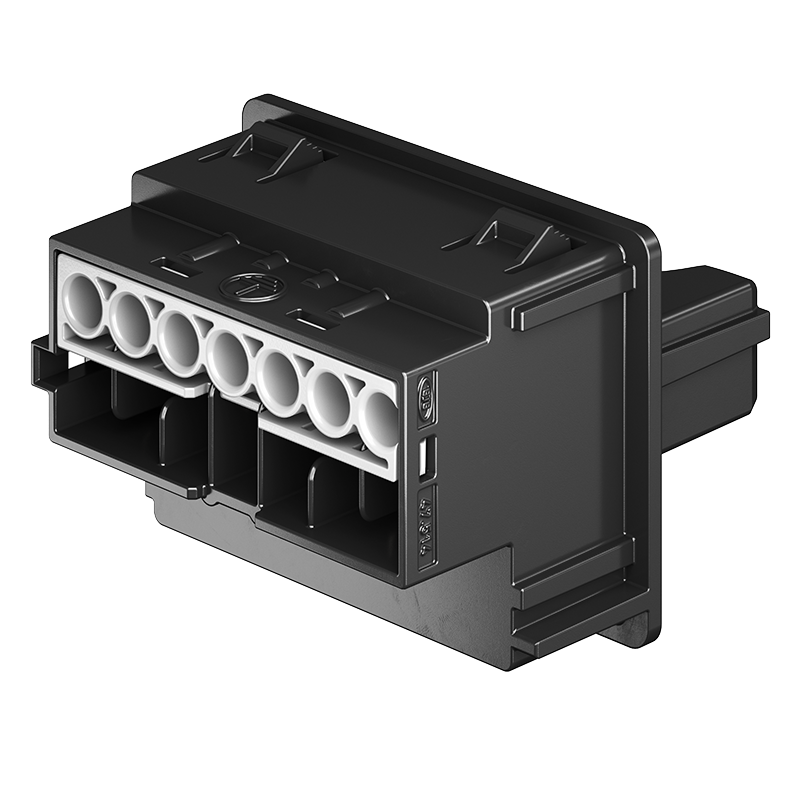

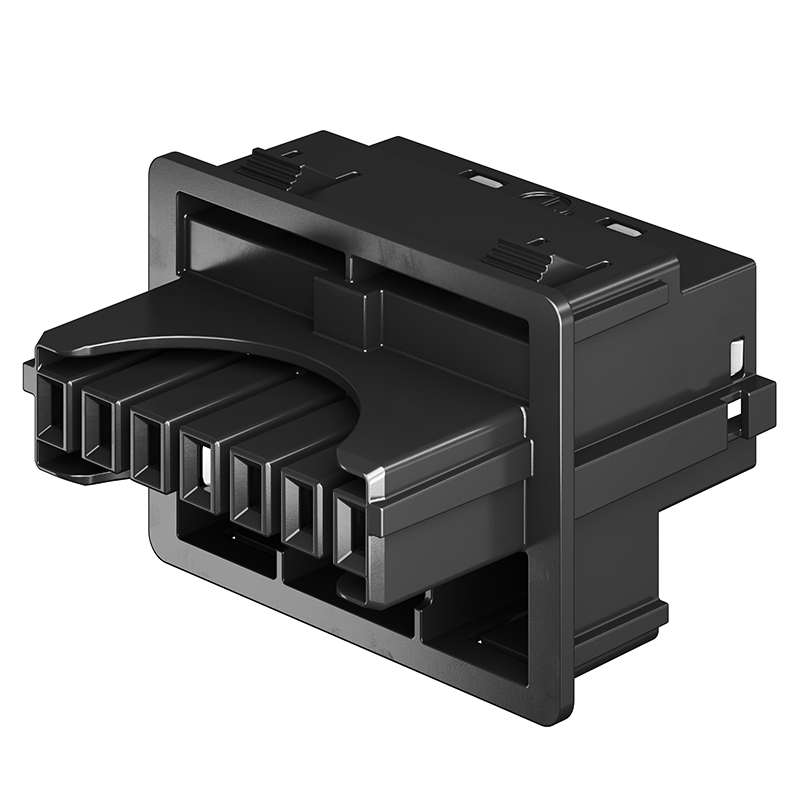

Female Mains Connector 7 pole

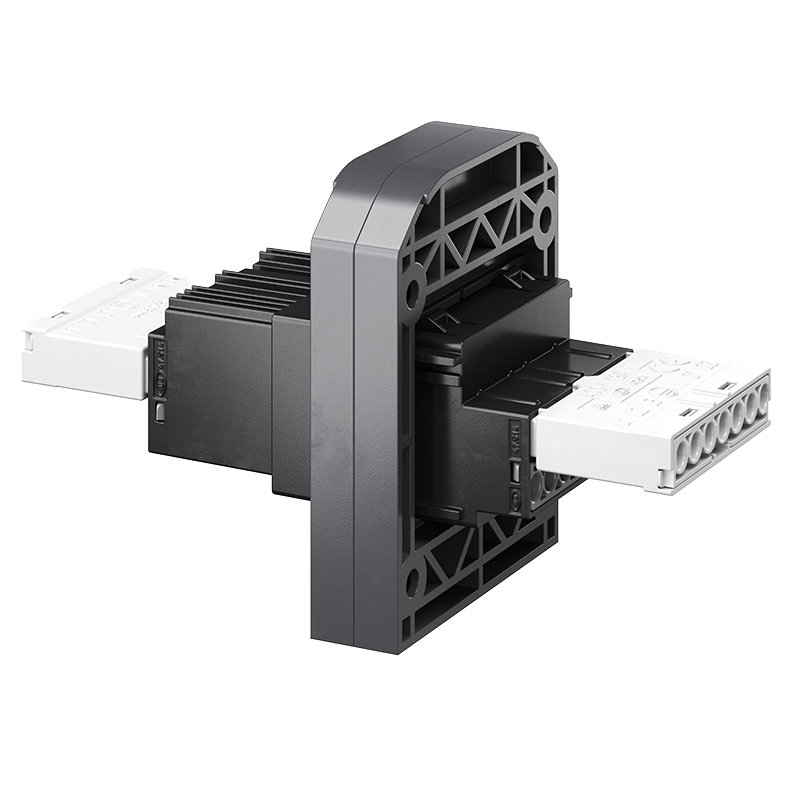

• Standard connector system for integration into individual endcaps

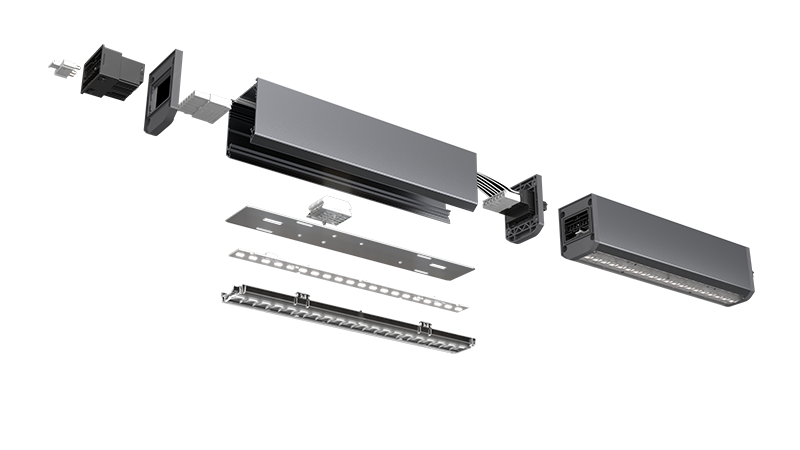

• Versatile in usage for all type of endcaps that is needed within a full integrated trunking system or single luminaire solution
• Push-in contacts for all electrical connections
• Plug and play solution
Conductor cross-section: | 1.5 - 2.5 mm² |
---|---|
Connector: | push wire contact |
Contact opening: | not releasable |
Earth contact : | Earth Sign central positioned |
Height: | 32,2 |
Length: | 42,8 |
Material: | Housing: PA 6.6 |
Max. operating current : | 16 A |
Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
Number of poles: | 7 |
Operating temperature: | Surroundings temperature from -40°C up to +125°C |

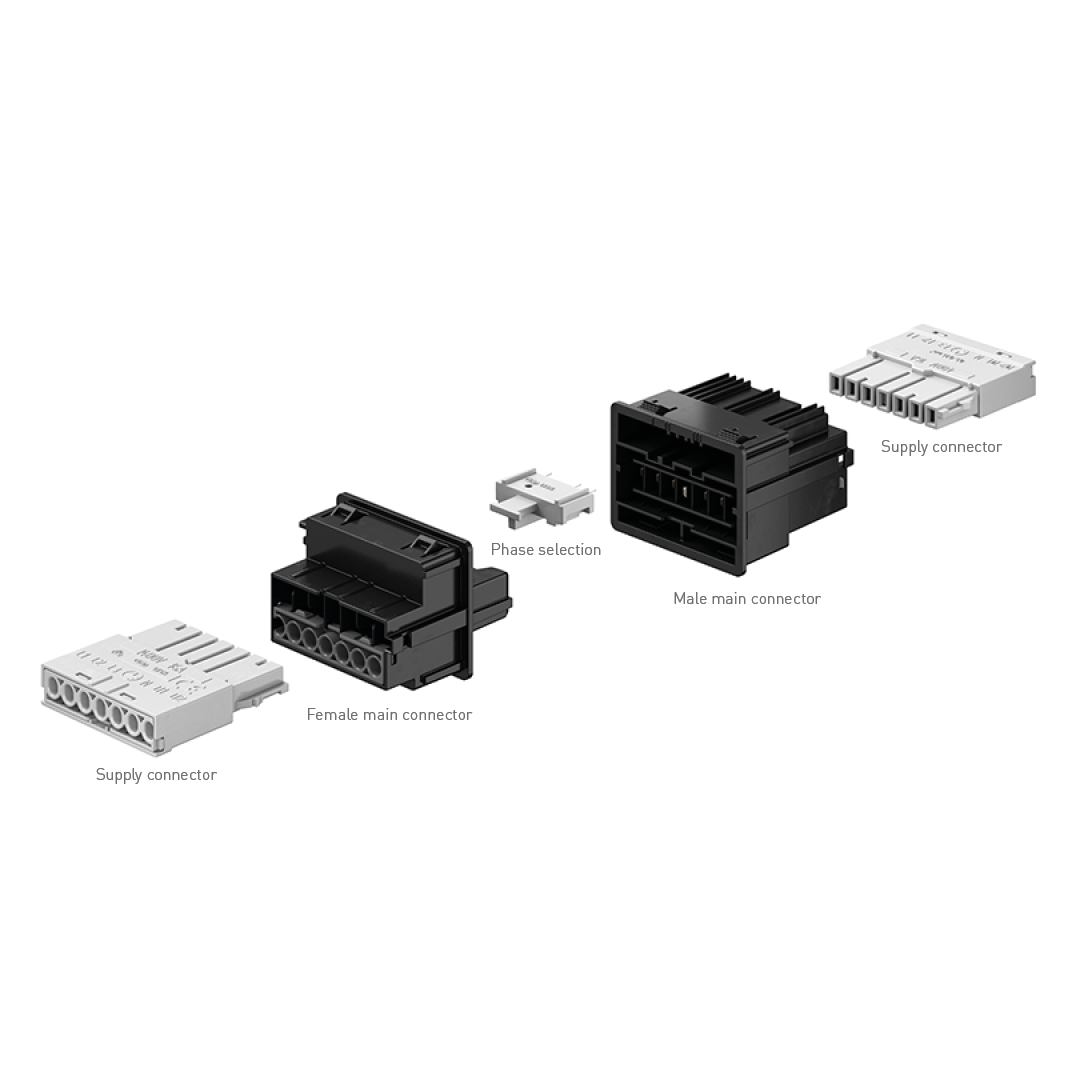

Other: | integrated phase selectionMating - / Unamting cycles: 10 |
Packaging quantity: | 1 |
Producttype: | Connector System for trunking systems |
Rated voltage: | 500 V |
Resistance: | Glow wire resistance: 850°C |
Seal: | no |
Series: | Connector System |
Weight: | 27,1 g |
Width: | 44,8 |
Wire length: | 12 - 15 mm |
Wires: | Solid wires |
mounting method: | Click-in fastening |
old article number: | 47.514.5107.80 |
