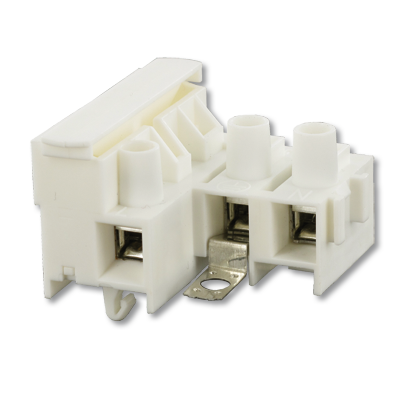

Fused terminal block 3 poles
Article number:
49.132.3002-0
EAN:
-
-
-
-
ø 2,7
-
-
-
0,8 - 1,0
Product information "Fused terminal block 3 poles"
With earth bracket
Pushwire terminals: 0.5 - 1.5 mm²
Screw terminals will also accept wires with ferrule
Fuse not supplied.
Push wire terminal block - earth terminal 2-wire income only
Pushwire terminals: 0.5 - 1.5 mm²
Screw terminals will also accept wires with ferrule
Fuse not supplied.
Push wire terminal block - earth terminal 2-wire income only
| Ausführung: | Fused Terminal Block |
|---|---|
| Color: | white |
| Lettering: | N ⏚ L |
| Luminaire wall thickness: | 0.8 - 1.0 |
| Material: | Housing: PBT |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Number of poles: | 3 |
| Packaging quantity: | 500 |
| Producttype: | Fused Terminal Blocks |
| Screw terminals: | ø 3.4 |
| Series: | Connectors and fused terminal blocks |
| Weight: | 18 g |
| mounting method 1: | Push through mount |
| old article number: | 49.132.3002.51 |
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 49.132.3002-0 | Genehmigung_liegt_vor_--Approval_at_hand_-6294080 | ||
| 49.132.3002-0 | Genehmigung_liegt_vor_--Approval_at_hand_-719108 |
-
-
-
ø 2,7
-
-
-
0,8 - 1,0
