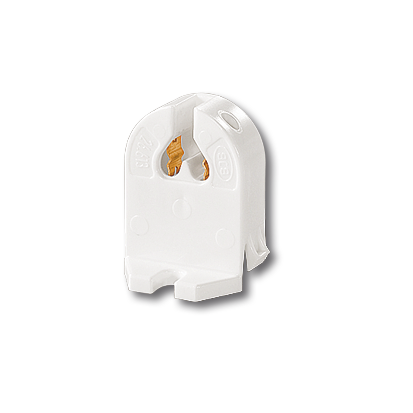

G5 (T5): Fluorescent Push-Through Lampholders
Article number:
26.613.1001-0
EAN:
4049853
-
-
0,6 - 1,2
-
-
18 AWG0,5 -1,0 mm²
-
Product information "G5 (T5): Fluorescent Push-Through Lampholders"

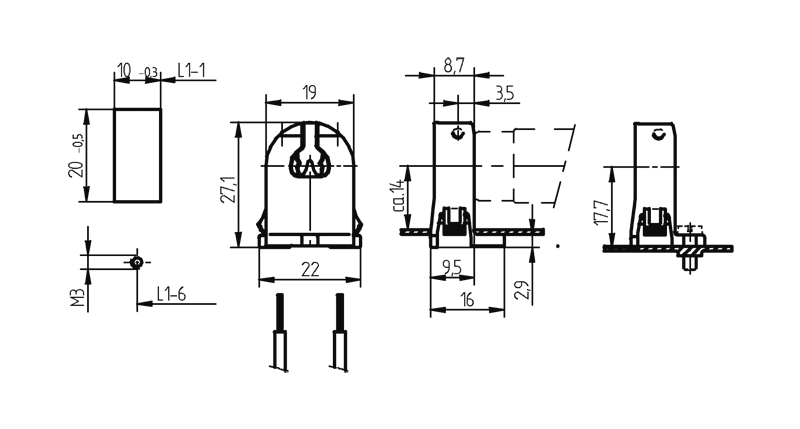

For enclosed cut-outs: 10 x 20 mm
A pair of lampholders provides a lamp length tolerance compensation of 2 mm
A pair of lampholders provides a lamp length tolerance compensation of 2 mm
| Ausführung: | G5 (T5): Push-Through Lampholders |
|---|---|
| Color: | white |
| Lamp axis height: | 14 / 17.7 |
| Luminaire wall thickness: | 0.6 - 1.2 |
| Material: | Housing: PC |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Packaging quantity: | 1000 |
| Producttype: | G5 Push-Through Lampholders |
| Series: | Linear Fluorescent Lampholders for dry rooms (IP20) |
| T-marking: | 110 |
| Top Test: | yes |
| Weight: | 3 g |
| approbation: | cULus |
| cULus file no.: | E-92235 |
| mounting method 1: | Snap-in / screw mount foot |
| old article number: | 26.613.1001.50 |
