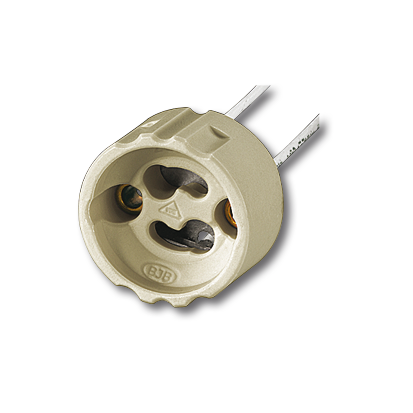

Lampholder GU10
Article number:
25.819.6901-0
EAN:
4049853
Product information "Lampholder GU10"
Other versions on request.
| Ausführung: | Line Voltage Halogen Lampholder GU10 |
|---|---|
| Connector: | Rear leads |
| Halogen lamp high-voltage: | GU10 |
| Material: | Housing: Ceramic / Mica plateContacts: Ni |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Packaging quantity: | 500 |
| Producttype: | Line Voltage Halogen Lampholder GU10 |
| Series: | Line Voltage Halogen Lampholders |
| Weight: | 16 g |
| Wires: | Cu, tin-plated, 18 AWG, with ferrule, Insulation: PTFE (max. 250° C), Lead length: 150 mm (6'') |
| approbation: | cULus |
| cULus file no.: | E-93328 |
| mounting method 1: | Screw mount |
| old article number: | 25.819.6901.00 |
Available Downloads
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 25.819.6901-0 | cULus,_gültig_für_USA_und_Kanada-cULus_(USA_and_Kanada)718037 |
