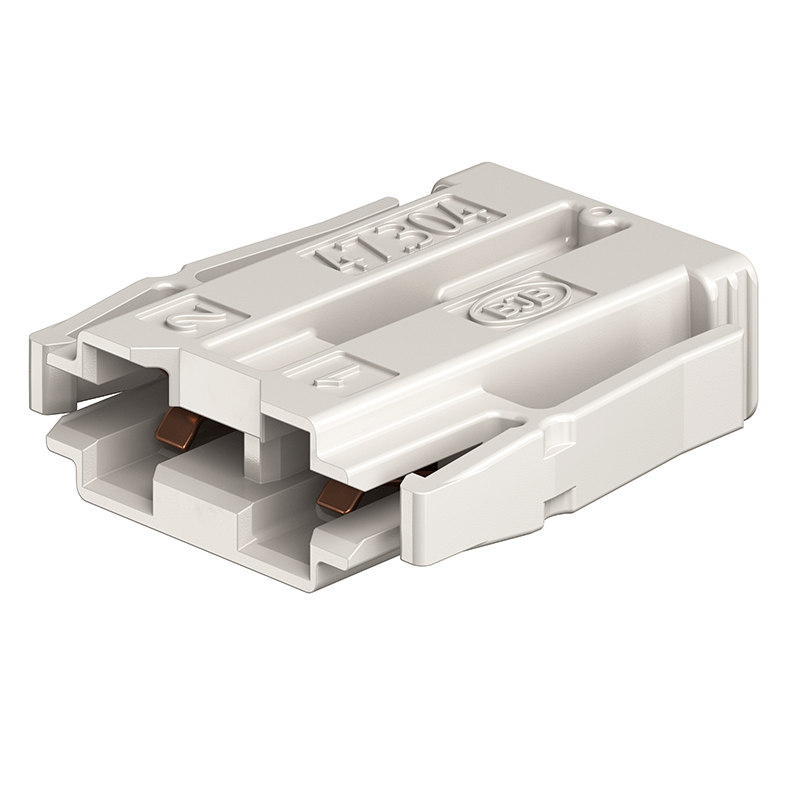

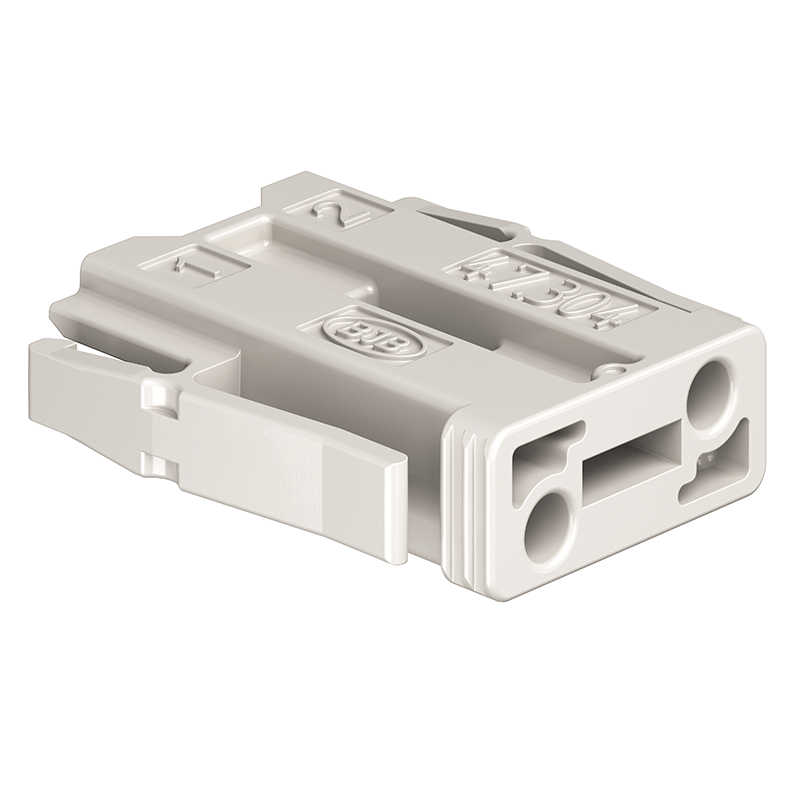

LED Board Connector based on Zhaga Book 26 New
Article number:
47.304.1001-0
EAN:
4049853
-
according to Zhaga Book 26
-
0.5 mm² - AWG 20
-
-
0.5 mm² - AWG 20
-
-
0,5 - 1,0
Product information "LED Board Connector based on Zhaga Book 26"
• 2 pole edge connector for LED boards
• Easy connection to integrate LED boards as a late stage finishing solution
• Simple LED board exchange for repair or recycling
• Board contacting on the top side of the LED board
• Push in contact
• Non SELV solution Mechaincal fixation and electrical contacting on the board to avoid fretting
• The contacts must be on the top of the LED module (same side as the LEDs).
• Easy connection to integrate LED boards as a late stage finishing solution
• Simple LED board exchange for repair or recycling
• Board contacting on the top side of the LED board
• Push in contact
• Non SELV solution Mechaincal fixation and electrical contacting on the board to avoid fretting
• The contacts must be on the top of the LED module (same side as the LEDs).
| Ausführung: | based on Zhaga Book 26 |
|---|---|
| Certification Mark: | VDE MARKS APPROVAL EN 60838-1 |
| Certification Status: | active |
| Color: | white |
| Conductor cross-section: | 0,5 mm² / 20 AWG |

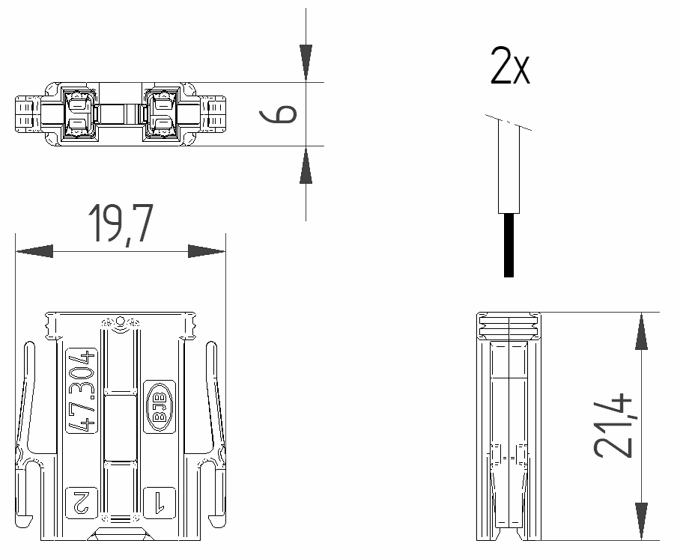

| Height: | 6 mm |
| Length: | 21,4 mm |
| Material: | Housing: PA - Bracket: Copper alloy - Contact surface Sn |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Number of poles: | 2 |
| Operating current: | 2A |
| Operating temperature: | Max. 90°C ambient temperature - lower limit temperature -35°C - Processing temperature: -35°C to +105°C |
| Operating voltage: | 350 V DC / 250 V AC |
| Packaging quantity: | 500 |
| Producttype: | LED Board connector systems |
| Series: | LED Board connector systems |
| Storage temperature: | -35°C to 105°C |
| Stranded, tinned wires: | Max. Ø = 0.8- 0.9 mm ultrasonically compacted or tinned |
| T-marking: | T90 |
| Weight: | 1,5 g |
| Width: | 19,7 mm |
| Wire length: | 8+1 mm / 0,315… 0,354 inch |
| mounting method: | Push-in contact |
