OptiLine Flat - Narrow 2000
Article number:
32.130.E324-1
EAN:
4049853
-
Spot
Product information "OptiLine Flat - Narrow 2000"

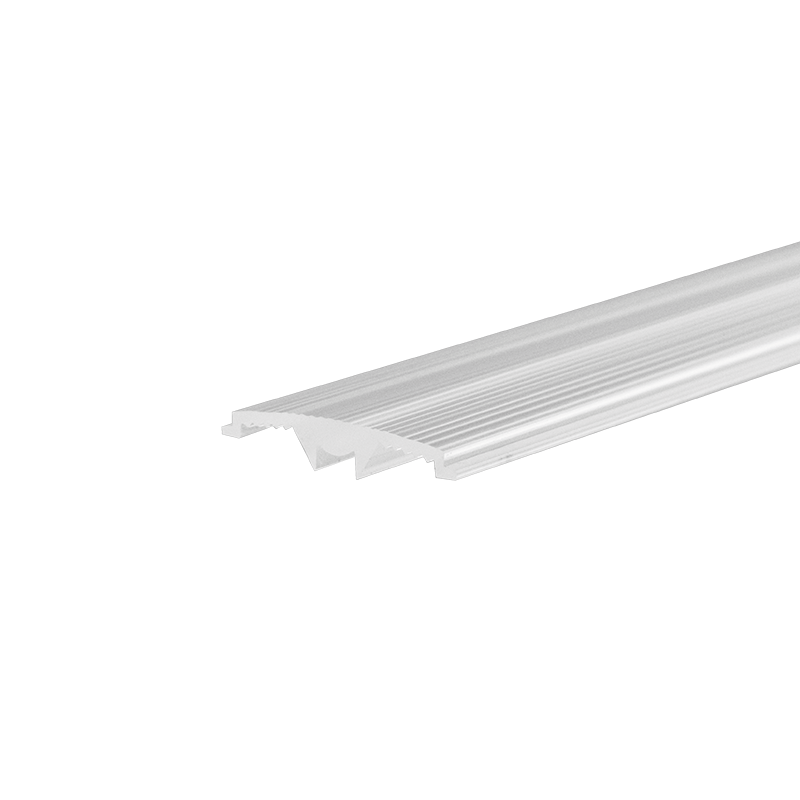

Linear optics for use with aluminium profiles
Slide in fixing into aluminium profiles
2D PMMA extrusion optics
Optimised for LED packages 2835, 3030 and 5630
For a slim luminaire construction
Area of applications for frosted, narrow beam, wide beam and medium beam light distribution
Office: For use in linear lighting and corridor lighting
Shop: General lighting and corridor lighting
Industry: Park stores, department stores and warehouses
Public applications: Corridors and stairways
• Improved visibility and contrast of the illuminated areas
• Uniform light distribution Area of applications for single and double asymmetic
| Application areas: | For use in linear luminaires in the field of lighting for office, store, industry and public space for diffuse, narrow-beam,wide-beam and medium light distribution |
|---|---|
| Country of origin: | DE |

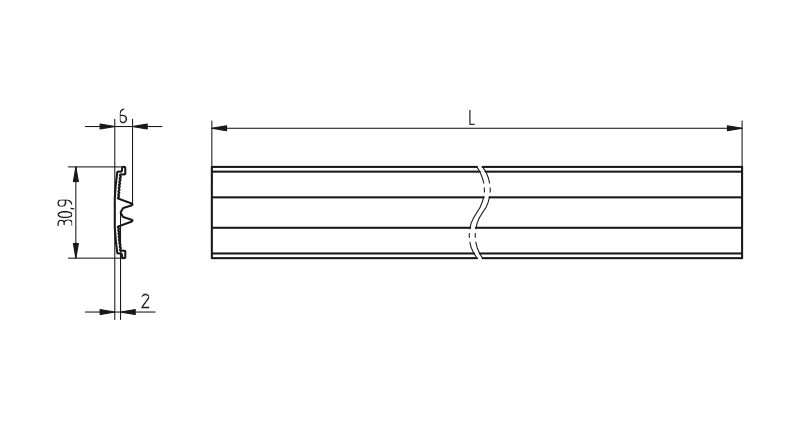

| Height: | 5,7 mm |
| Length: | 2000 mm |
| Light Distribution: | Narrow Beam |
| Material: | PMMA |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Optical efficiency: | 86,5 % (Lextar 5630 3.000 lm/m) |
| Other: | other lengths possible on request |
| Packaging quantity: | 1 |
| Producttype: | OptiLine Flat |
| Series: | OptiLine Flat |
| Width: | 27,8 mm (30,9 mm) |

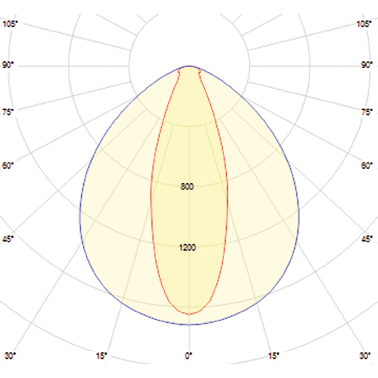

| angle of radiation: | 40° (Lextar 5630 3.000 lm/m) |

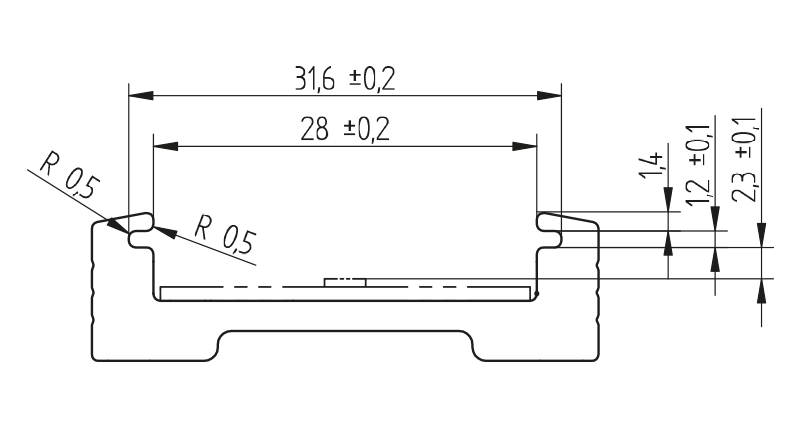

| mounting method 1: | Slide in fixing into aluminium profile |
| old article number: | 32.130.-324.89 |
