OptiLine Louvre Mini 21 Black & White 1 ft optics grid New
Article number:
35.314.A001-0
EAN:
4049853
-
max. 110°C
Product information "OptiLine Louvre Mini 21 Black & White 1 ft optics grid"
Louvre - 1 ft
• For use with pitch dependent linear Lens array
35.314.A002 0 Narrow

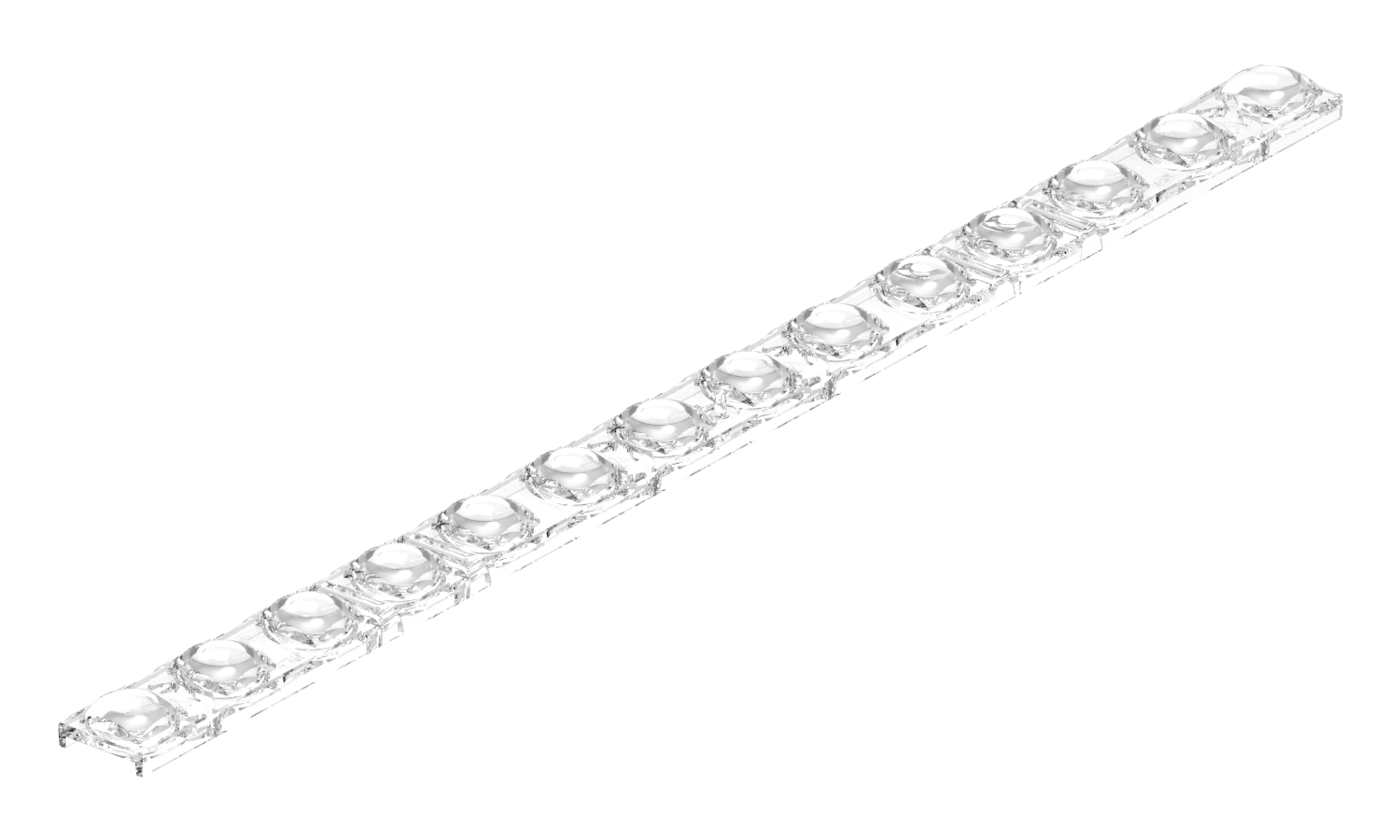

35.314.A003 0 Wide
• Optics and louvre are only available separately
Technical details
• Centering and positioning pin for aligning the louvre with the optic
• Snap-in hook for attachment of louvre to optics
• Seamless integration into the luminaire housing
| Application areas: | Applications that require optimal light and minimal glare |
|---|---|
| Color: | white |
| Height: | 13 mm |
| Length: | 279,5 mm |
| Material: | PC |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | max. 80 °C |
| Packaging quantity: | 1 |
| Pitch distance: | 20 mm |
| Producttype: | OptiLine Louvre Mini 21 |
| Series: | OptiLine Louvre Mini 21 |
| Utilityfilm Link: | https://www.youtube.com/watch?v=1OUwW8IgPaw |
| Weight: | 14,67 g |
| Width: | 21 mm |
| mounting method 1: | Snap into the optics |
