OptiLine Louvre Mini 21 Wide New
Article number:
35.314.A003-0
EAN:
4049853
-
max. 110°C
-
Flood
Product information "OptiLine Louvre Mini 21 Wide"
Pitch dependent linear Lens array - Narrow
• The 35.314 (1 ft) optics are designed for use with 35.314.A001 (louvre 1 ft).
• Optics and louvre are only available separately.
• Homogeneous color mixing (also with tunable white applications)
Technical details
• Centering pins for optimal alignment of optics and LED module
• The distance to the circuit board is ensured by the spacers on the optics (1 ft.)
• Fixing the optics and circuit board to the metal sheet by screws (M3 screw)
| Application areas: | Applications that require optimal light and minimal glare |
|---|---|
| Color: | clear |

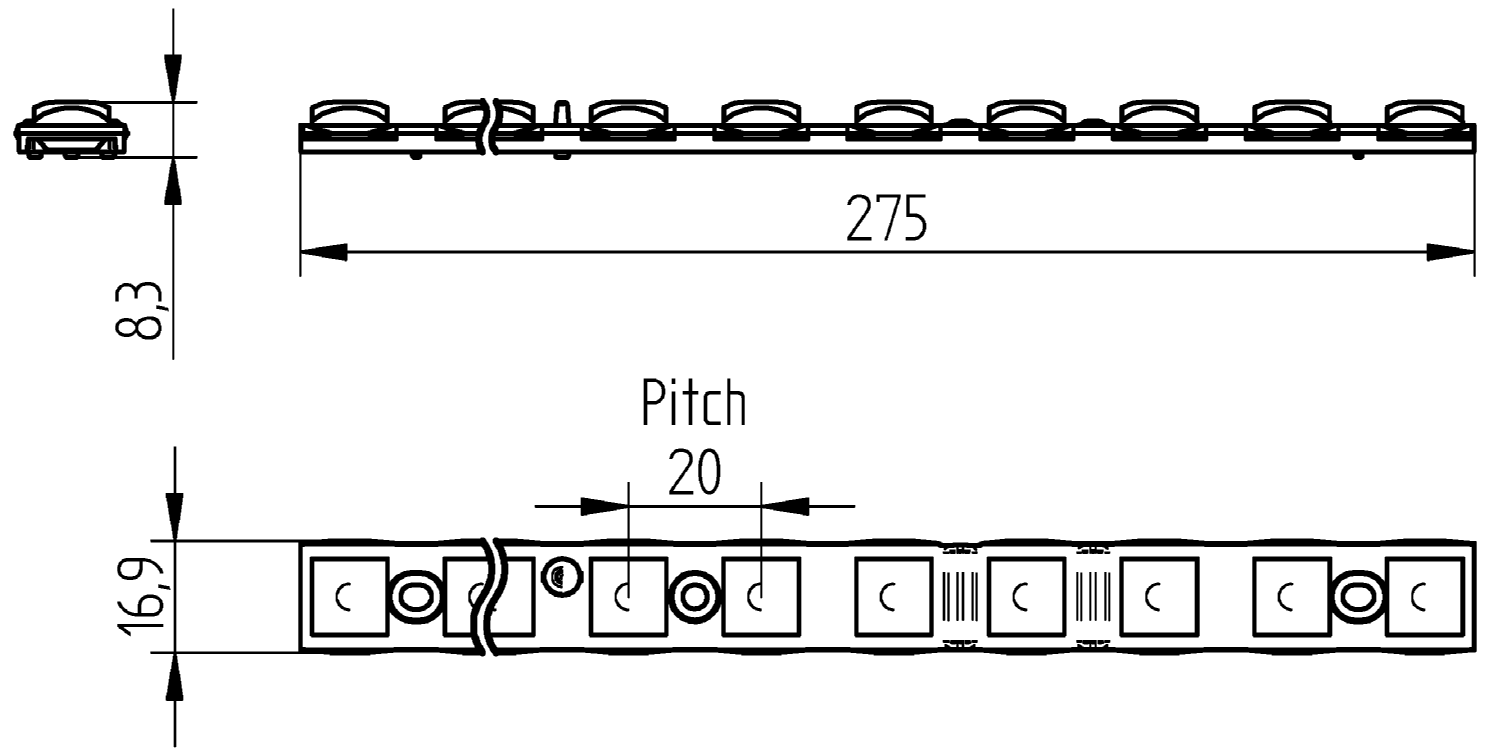

| Height: | 8,3 mm |
| LED Typ: | Tridonic LLE 20x280mm 750lm 940 LV MD ADV1 |
| Length: | 275 mm |

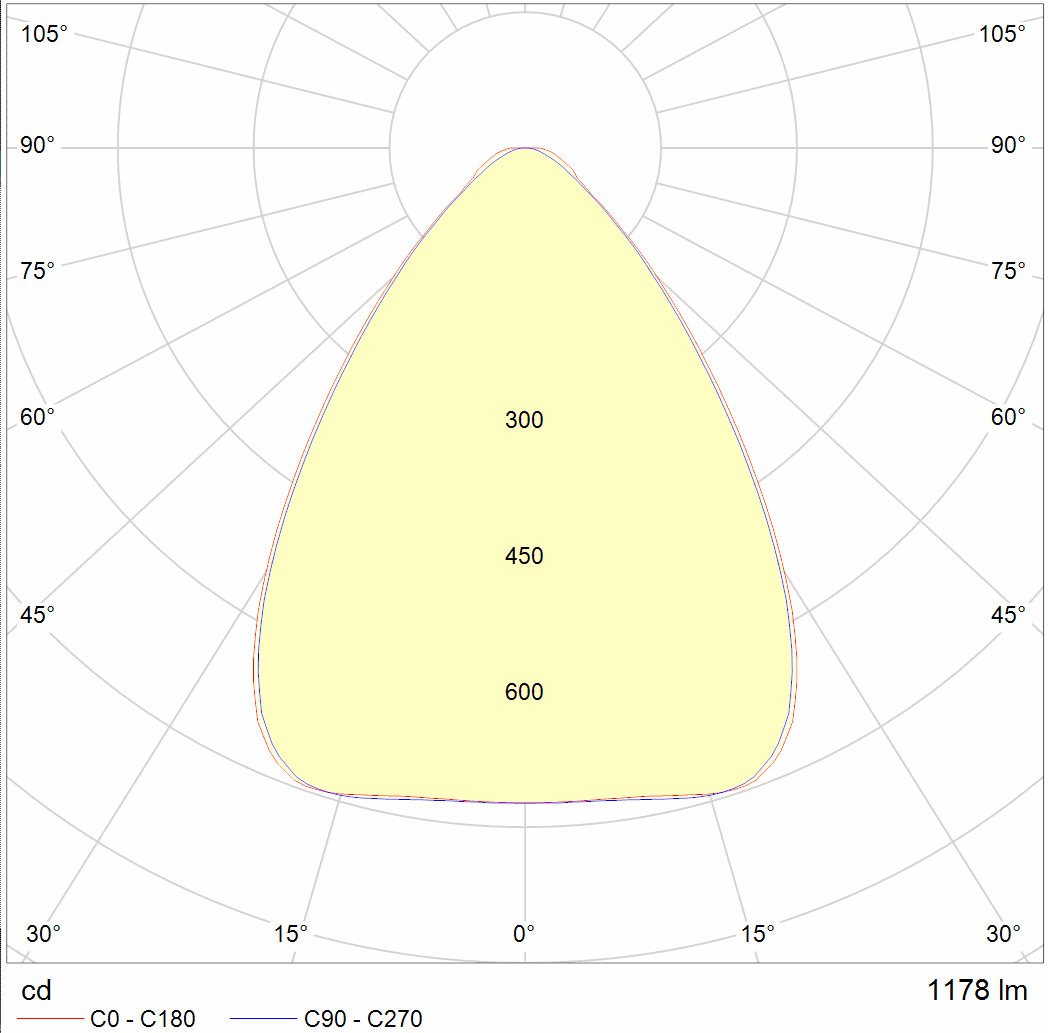

| Light Distribution: | wide |
| Material: | PMMA |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | max. 80 °C |
| Packaging quantity: | 1 |
| Pitch distance: | 20 mm |
| Producttype: | OptiLine Louvre Mini 21 |
| Series: | OptiLine Louvre Mini 21 |
| Suitable for: | for LED dimensions 2835, 3030 |
| Utilityfilm Link: | https://www.youtube.com/watch?v=1OUwW8IgPaw |
| Weight: | 14,41 g |
| Width: | 16,9 mm |
