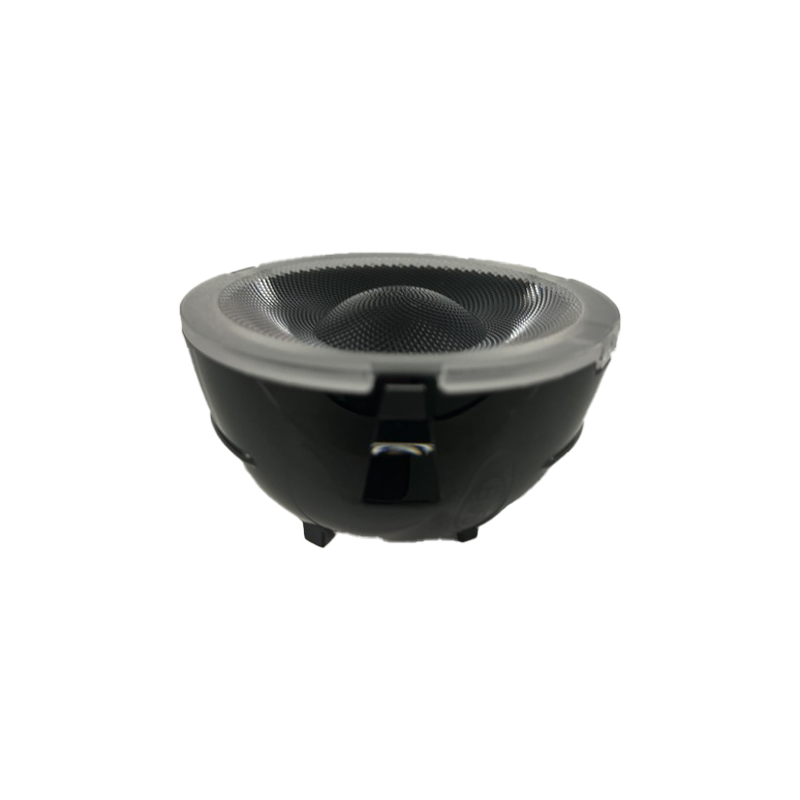

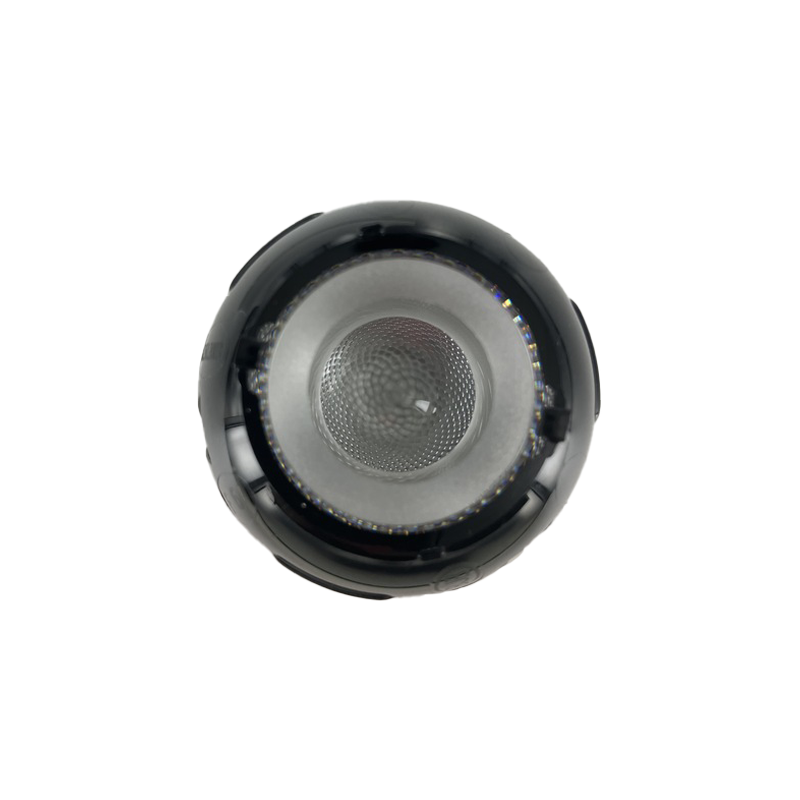

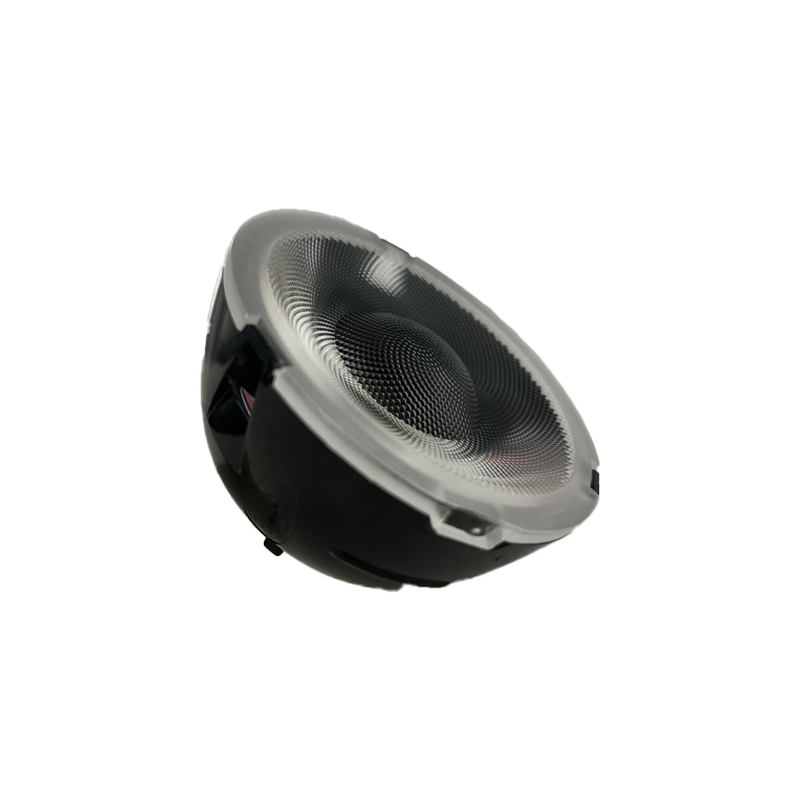

OptiSpot Lens Ø 50 mm - Flood
Article number:
35.250.2003-0
EAN:
4049853
Product information "OptiSpot Lens Ø 50 mm - Flood"
OptiSpot Lens Ø 50 mm - Flood
| Efficiency: | 88% |
|---|---|

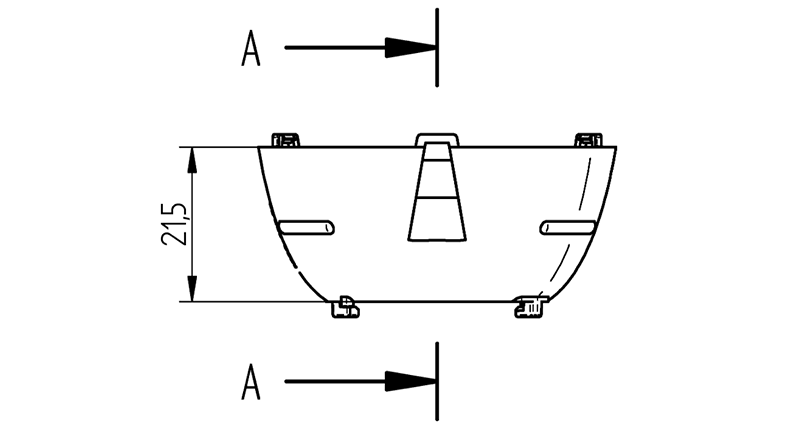

| Height: | 23,5 mm |
| Light Distribution: | Flood |

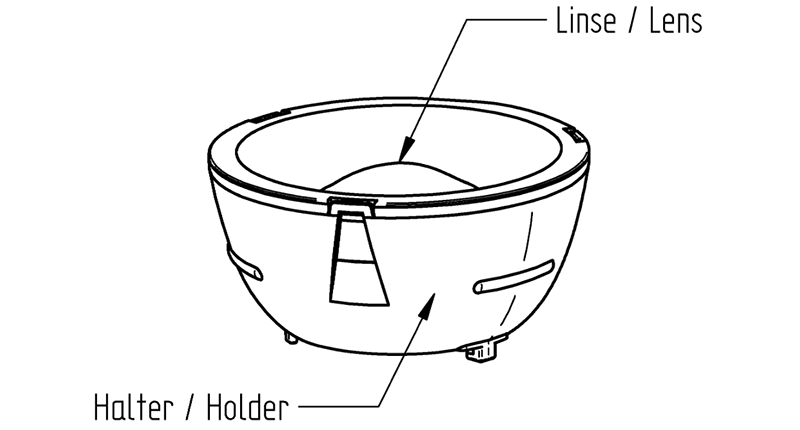

| Material: | Holder: PC; Lens: PMMA |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | max. 80°C |
| Packaging quantity: | 294 |
| Producttype: | OptiSpot Lens Ø 50 mm |
| Series: | Lenses Ø 50 mm for Spotlight Connectors Ø 35 mm |
| Suitable for: | recommended COB type: Citizen CLU02J |
| Weight: | 30,8 g |
| angle of radiation: | 41° |
| mounting method 1: | Bayonet fixing by Twist & Lock action into cob connector |
| old article number: | 35.250.2003.80 |
