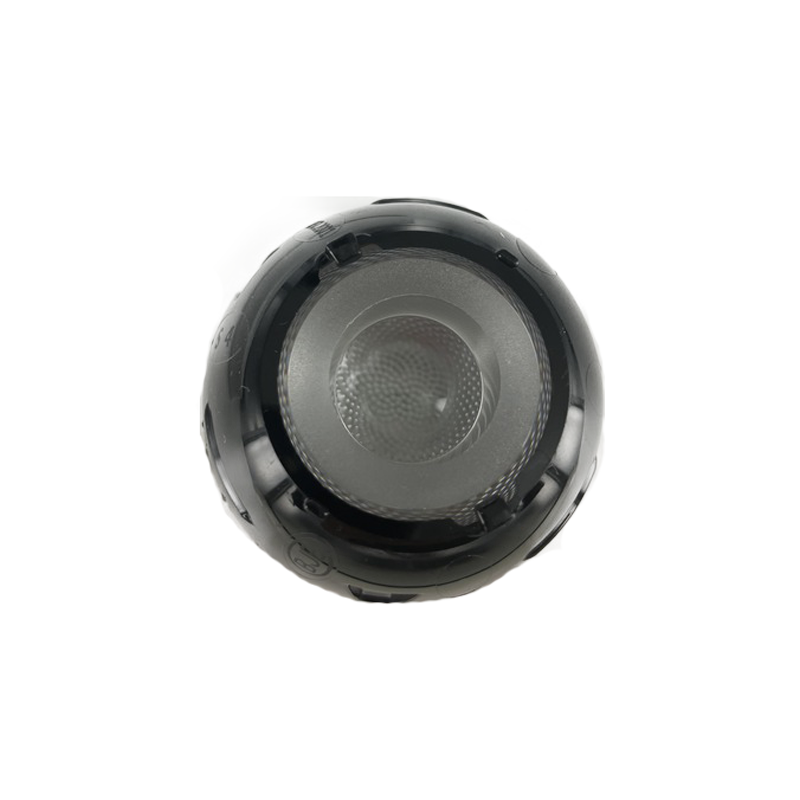

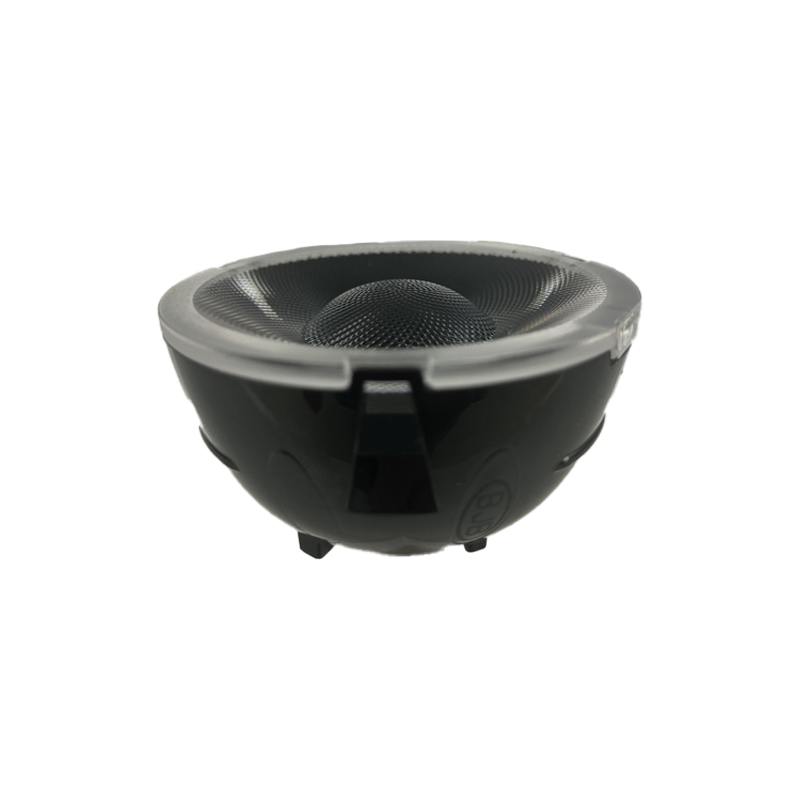

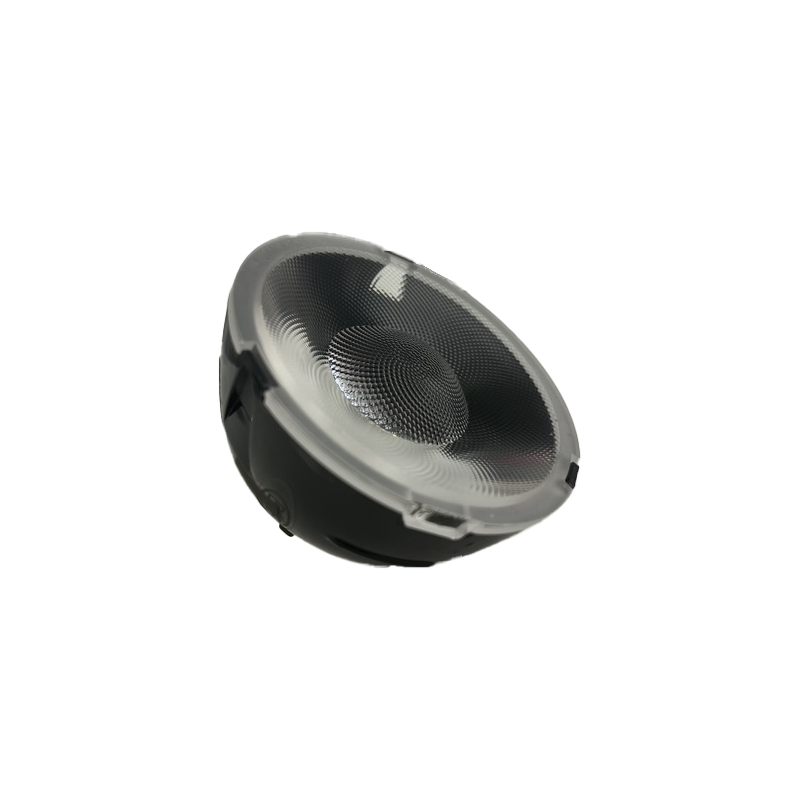

OptiSpot Lens Ø 50 mm - Spot
-
-
Spot
Efficiency: | 85.5% |
---|---|
Height: | 23,5 mm |
Light Distribution: | Spot |
Material: | Holder: PC; Lens: PMMA |
Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
Operating temperature: | max. 80 °C |
Packaging quantity: | 294 |
Producttype: | OptiSpot Lens Ø 50 mm |
Series: | Lenses Ø 50 mm for Spotlight Connectors Ø 35 mm |
Suitable for: | recommended COB type: Citizen CLU02J |
Weight: | 29,7 g |
angle of radiation: | 20° |
mounting method 1: | Bayonet fixing by Twist & Lock action into cob connector |
old article number: | 35.250.2001.80 |
