OptiSpot Lens Ø 50 mm - Wide Flood

Product information "OptiSpot Lens Ø 50 mm - Wide Flood"
OptiSpot Lens Ø 50 mm - Wide Flood
Efficiency: 84.9%

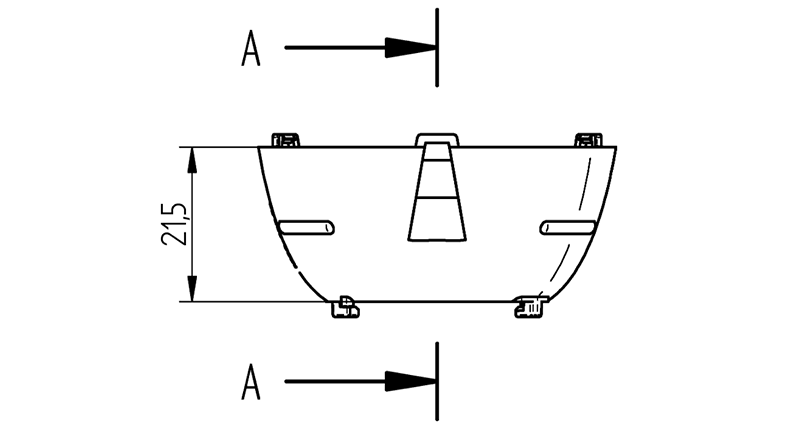

Height: 23,5 mm
Light Distribution: Wide Flood

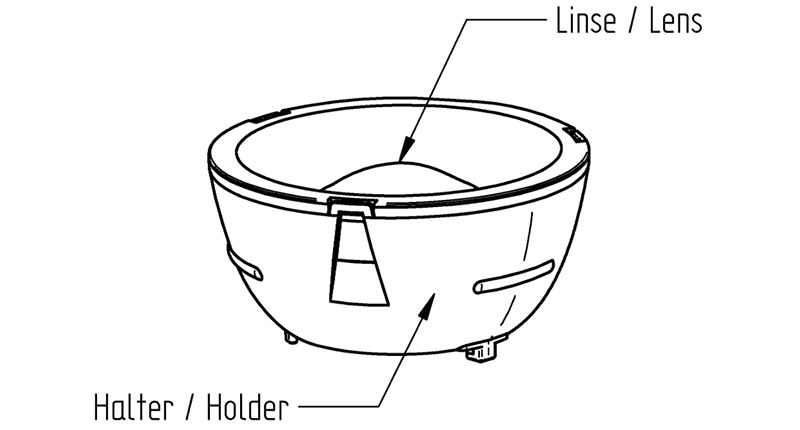

Material: Holder: PC; Lens: PMMA
Note warranty conditions: *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid.
Operating temperature: max. 80 °C
Packaging quantity: 294
Producttype: OptiSpot Lens Ø 50 mm
Series: Lenses Ø 50 mm for Spotlight Connectors Ø 35 mm
Suitable for: recommended COB type: Citizen CLU02J
Weight: 28,3 g
angle of radiation: 50°
mounting method 1: Bayonet fixing by Twist & Lock action into cob connector
old article number: 35.250.2004.80

Available CAD Downloads

Certifications

Article Number Status Description Documents
  • Wide Flood
