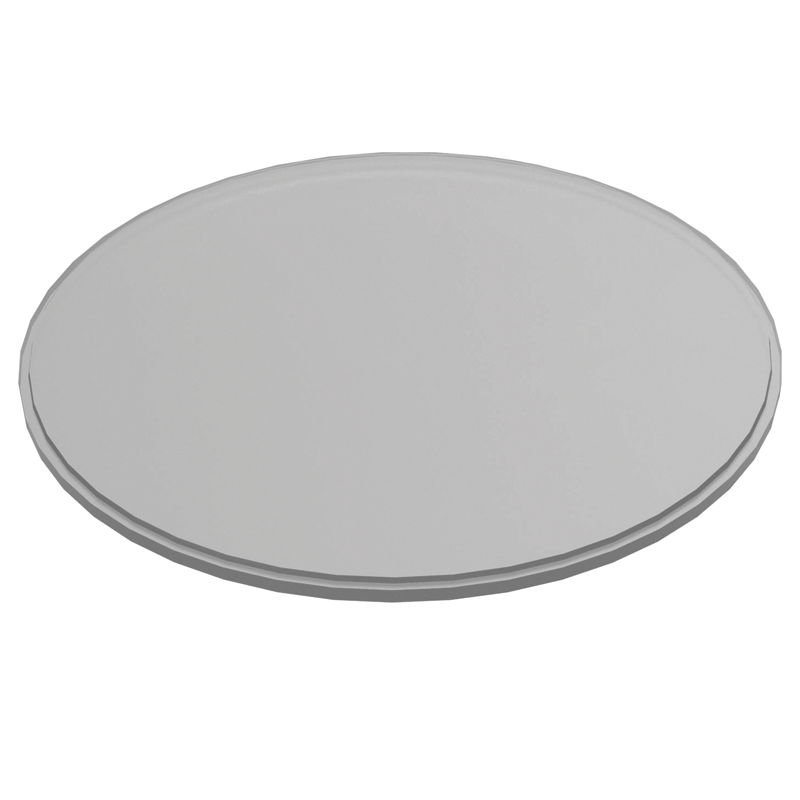

OptiSpot R Cover - Diffusor plate
-
-
Diffuse
For use with reflectors 35.835.1001 - 1004 mit Ø 50 mm
The following product properties are achieved by combining a relector with a cover plate:
• Soft transition of the color fringes
• Possibly visually disruptive openings of the connector are covered
• Dust proof
• Insect protection
• Contact protection (reflector)
Color: | diffuse |
---|---|
Material: | PC, satined surface, clearPC, satined surface |
Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
Operating temperature: | max. 100 °C |
Packaging quantity: | 375 |
Producttype: | OptiSpot Reflectors Ø 50 mm |
Series: | Reflectors Ø 50 mm for Spotlight Conectors Ø 35 mm |
Weight: | 3 g |
mounting method 1: | Snap in fixing onto top side of the reflectorby means of snap in hooks |
old article number: | 35.908.1004.89 |
Available CAD Downloads
Certifications
Article Number | Status | Description | Documents |
---|
-
-
Diffuse
