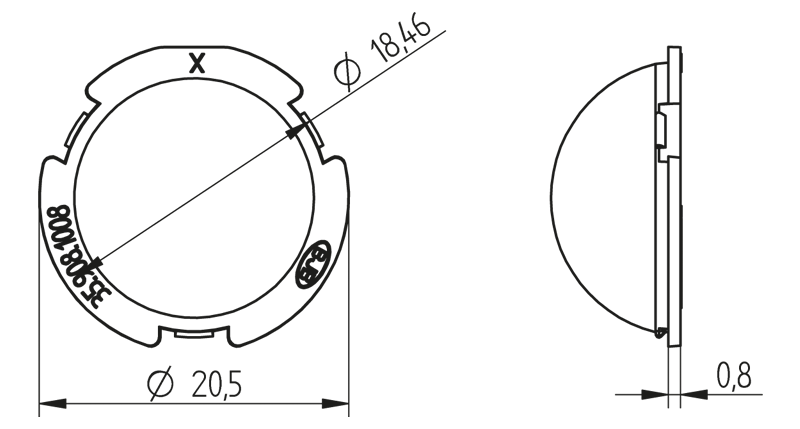

OptiSpot R Lens -Diffusor lens
-
-
Diffuse
For use with reflectors 35.835.1001 - 1004 mit Ø 50 mm
The following product properties are achieved by combining a cover plate with a diffusor lens:
• Soft transition of the color fringes
• Possibly visually disruptive openings of the connector are covered
• Visible reflector design
Additional properties:
• Dust proof
• Insect protection
• Contact protection (COB)
Material: | clear PC, satined surface |
---|---|
Operating temperature: | max. 80 °C |
Packaging quantity: | 1 |
Producttype: | OptiSpot Reflectors Ø 50 mm |
Series: | Reflectors Ø 50 mm for Spotlight Conectors Ø 35 mm |
Weight: | 0,66 g |
mounting method 1: | Snap-in fixing onto bottom side of the reflector |
old article number: | 35.908.1008.89 |
