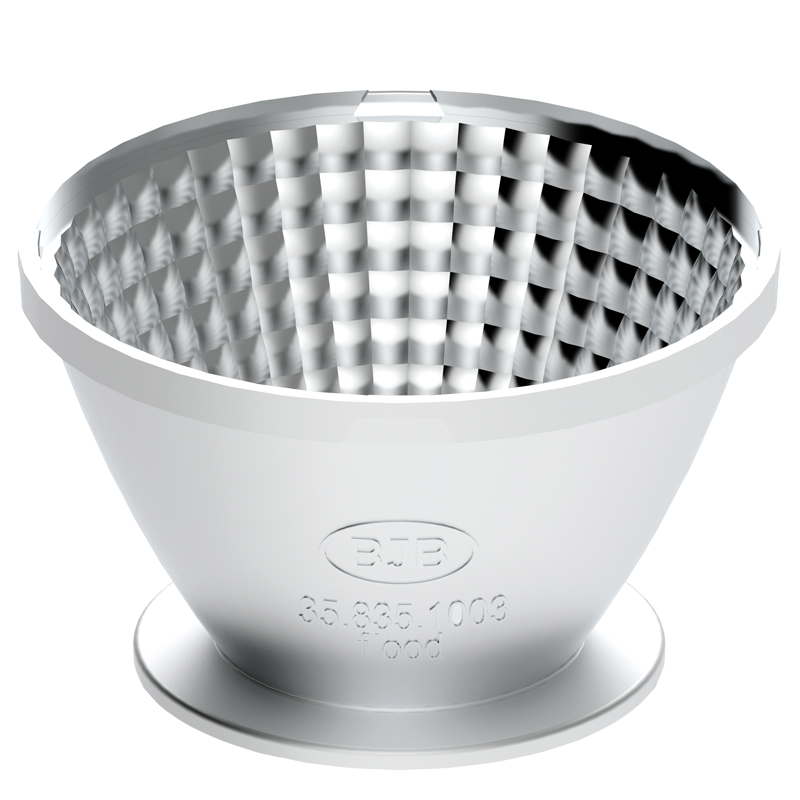

OptiSpot Reflector Ø 50 mm - Flood
-
-
Flood
Reflector is optimized for use with connectors 47.360.1020 and 47.360.1030 with a diameter of 35 mm.*
• Reflector interface is adapted to the mixing cone of the connector

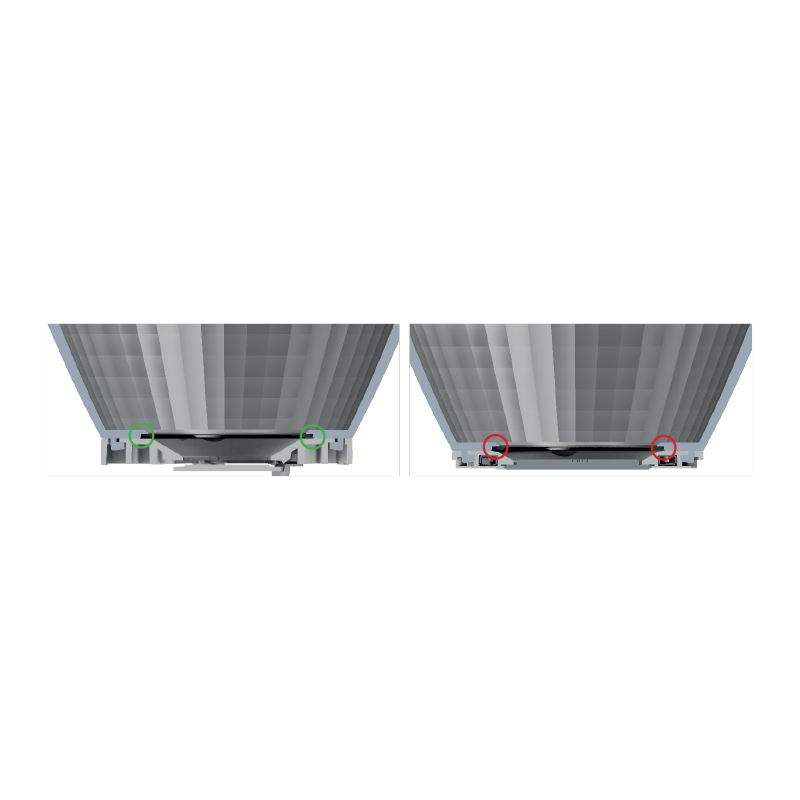

• Possibly visually disruptive openings of the connector are covered
We recommend the use of COB's with LES < 12 mm

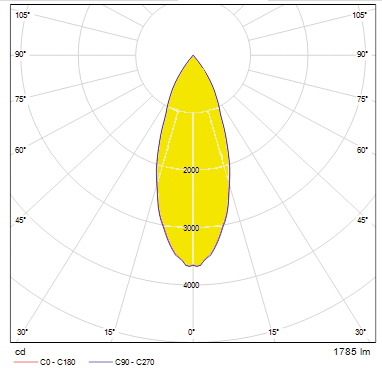

Beam angle measured with COB Citizen CLU02J and connector 47.360.1020.
Beam angle depends on the COB used.

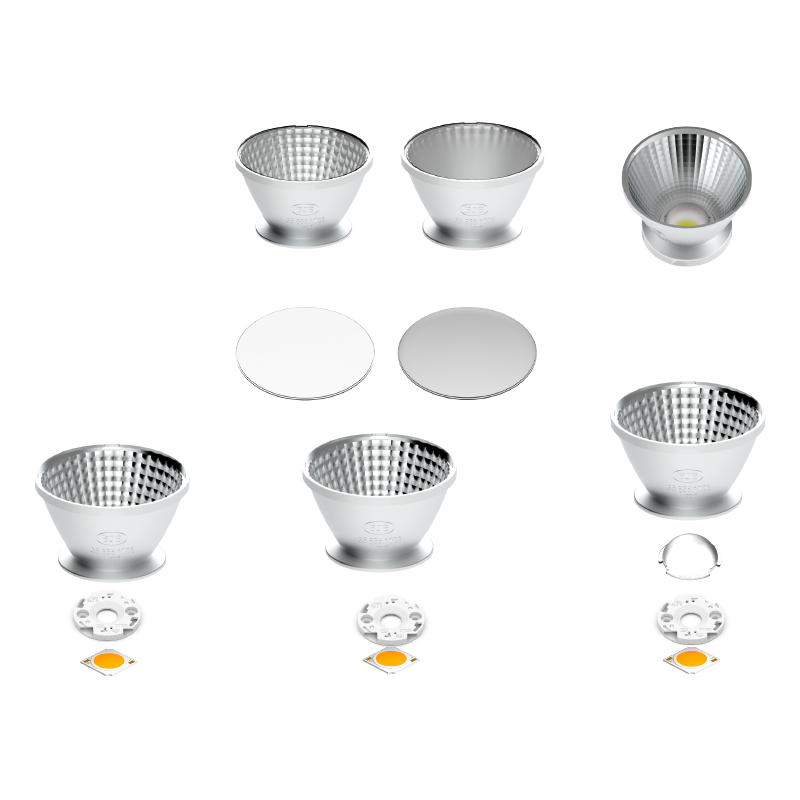

You will also find the appropriate connecting elements with us!
* The reflector can also be combined with other connectors Please contact us for more information.
Height: | 30 mm |
---|---|
Light Distribution: | Flood |
Material: | PC, Aluminium coated |
Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
Operating temperature: | max. 100 °C |
Packaging quantity: | 343 |
Producttype: | OptiSpot Reflectors Ø 50 mm |
Series: | Reflectors Ø 50 mm for Spotlight Conectors Ø 35 mm |
Weight: | 7,4 g |
mounting method 1: | Bayonet fixing by Twist & Lock action |
old article number: | 35.835.1003.56 |
Available CAD Downloads
Certifications
Article Number | Status | Description | Documents |
---|
-
-
Flood
