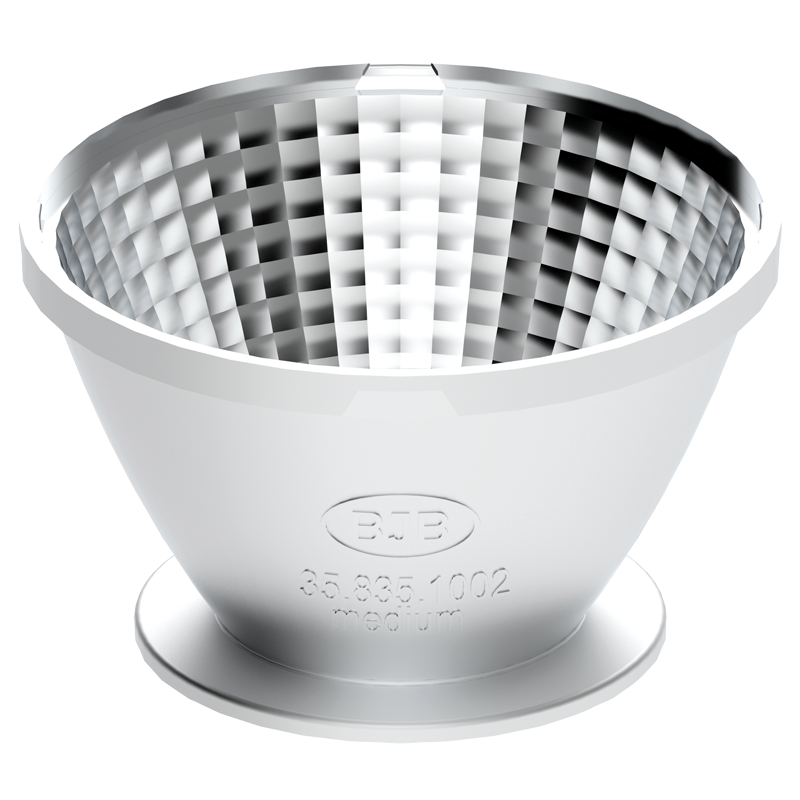

OptiSpot Reflector Ø 50 mm - Medium
Article number:
35.835.1002-0
EAN:
4049853
-
-
Medium
Product information "OptiSpot Reflector Ø 50 mm - Medium"
Reflector is optimized for use with connectors 47.360.1020 and 47.360.1030 with a diameter of 35 mm.*
• Reflector interface is adapted to the mixing cone of the connector
• Possibly visually disruptive openings of the connector are covered
We recommend the use of COB's with LES < 12 mm

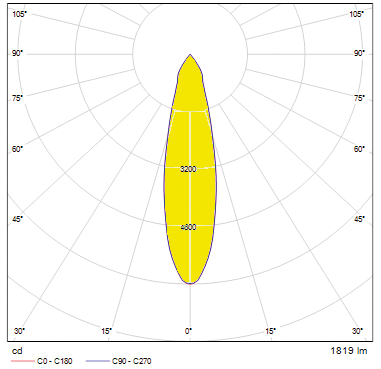

Beam angle measured with COB Citizen CLU02J and connector 47.360.1020.
Beam angle depends on the COB used.

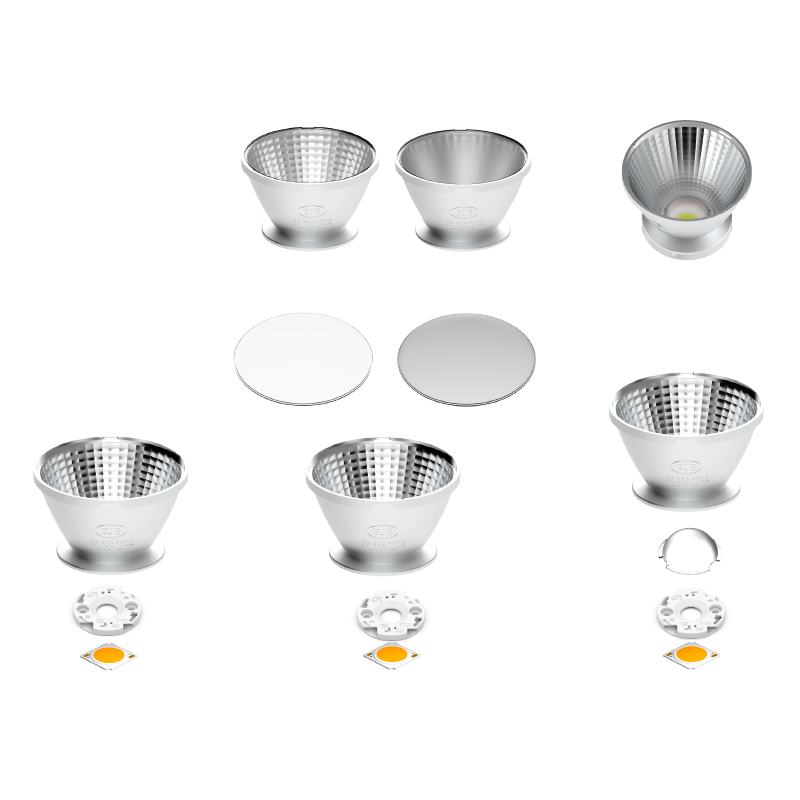

You will also find the appropriate connecting elements with us!
* The reflector can also be combined with other connectors Please contact us for more information.
| Height: | 30 mm |
|---|---|
| Light Distribution: | Medium |
| Material: | PC, Aluminium coated |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | max. 100 °C |
| Packaging quantity: | 343 |
| Producttype: | OptiSpot Reflectors Ø 50 mm |
| Series: | Reflectors Ø 50 mm for Spotlight Conectors Ø 35 mm |
| Weight: | 7,4 g |
| mounting method 1: | Bayonet fixing by Twist & Lock action |
| old article number: | 35.835.1002.56 |
