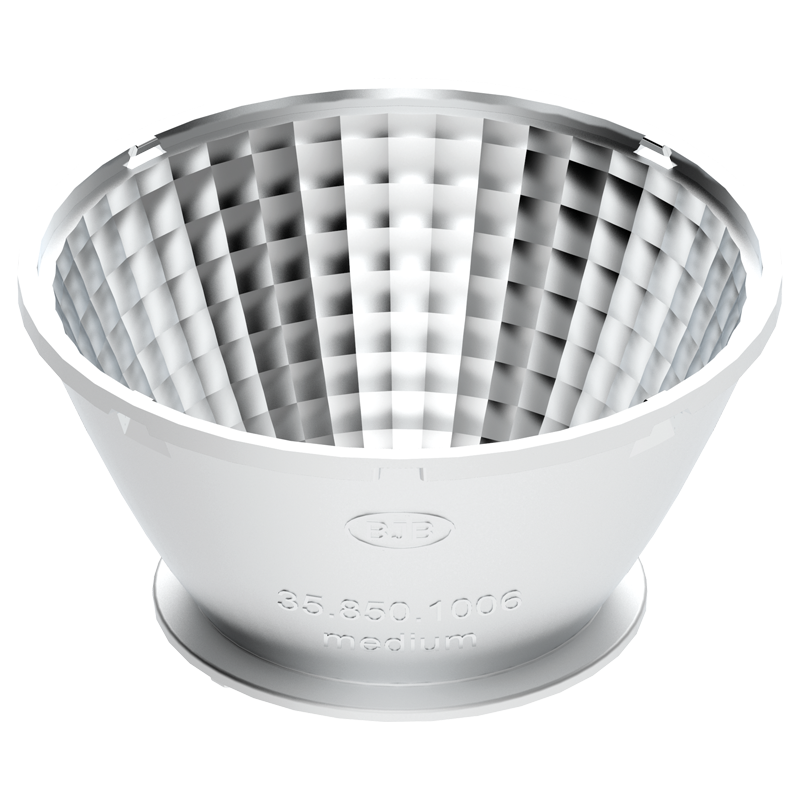

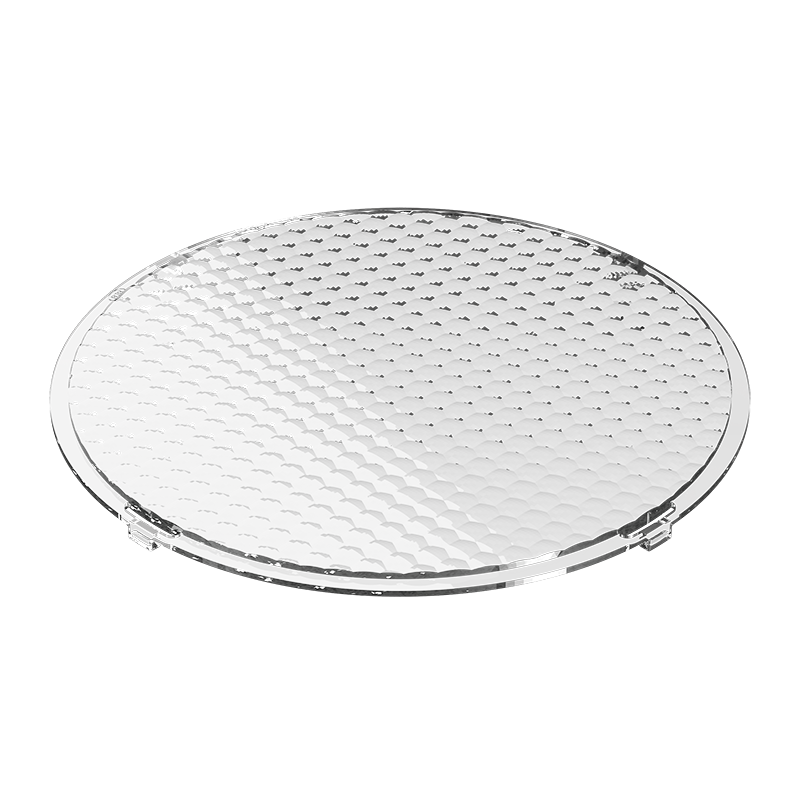

OptiSpot Reflector Ø 74 mm - Medium
-
-
Medium

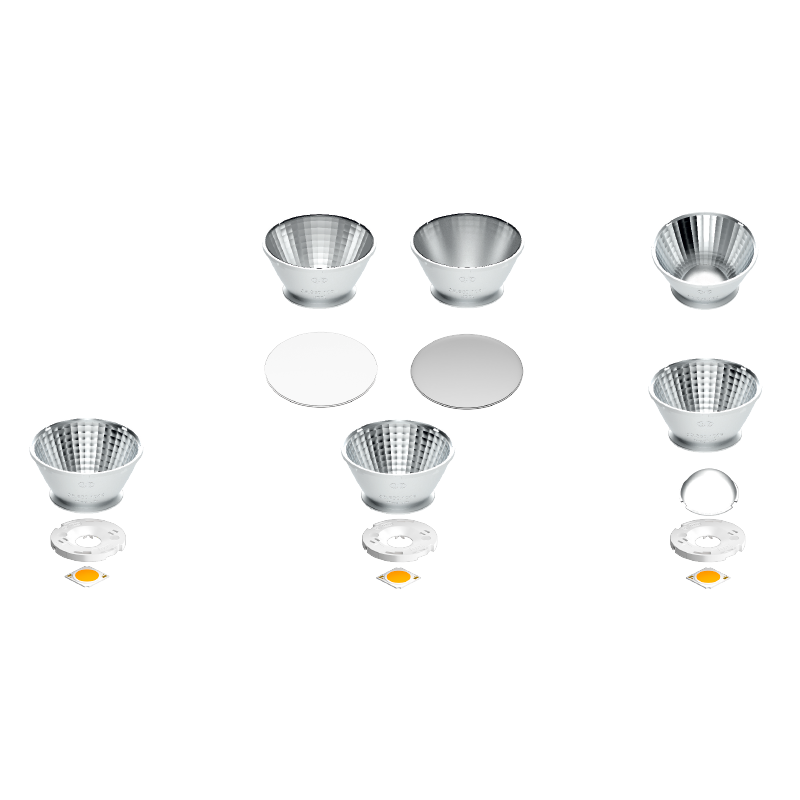

Reflector is optimized for use with connectors 47.319.2013 / 2021 / 2025 / 2026 / 2345 and 47.360.5010 with Ø 50 mm
• Reflector interface is adapted to the mixing cone of the connector
• Possibly visually disruptive openings of the connector are partly covered
Recommended for COB's with LES < 17 mm

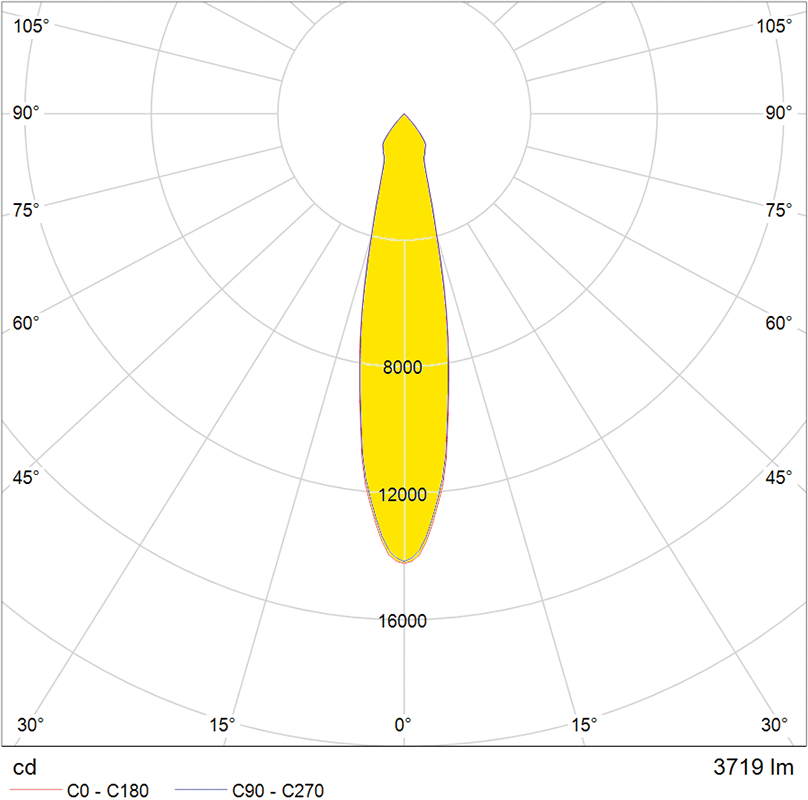

Beam angle (FWHM) measured with Citizen CLU38 and connector 47.319.2025.
Beam angle depends on used COB and its LES.

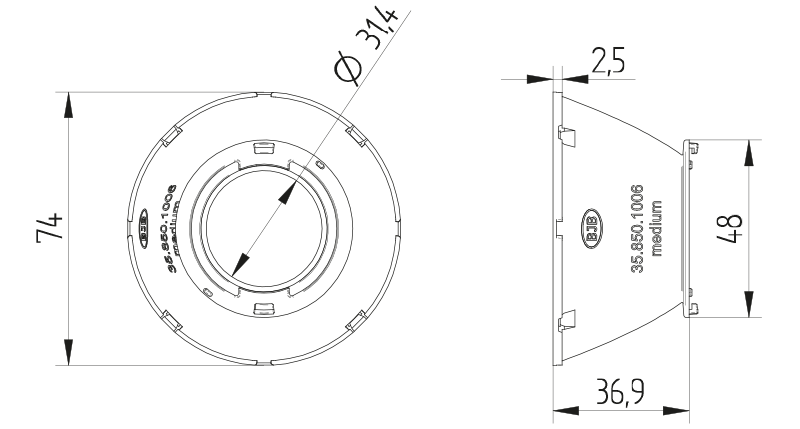

Height: | 36,9 |
---|---|
Light Distribution: | Medium |
Material: | PC, Aluminium coated |
Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
Operating temperature: | max. 100 °C |
Packaging quantity: | 300 |
Producttype: | OptiSpot Reflectors Ø 74 mm |
Series: | Reflectors Ø 74 mm for Spotlight Connectors Ø 50 mm |
mounting method 1: | Bayonet fixing by Twist & Lock action |
old article number: | 35.850.1006.56 |
