OptiSpot Reflector Ø 81.3 mm
Article number:
35.850.1013-0
EAN:
4049853
-
-
Spot
Product information "OptiSpot Reflector Ø 81.3 mm"
Reflector is optimized for use with connectors 47.319.2013 / 2021 / 2025 / 2026 / 2345 and 47.360.5010.50 with Ø 50 mm.
The reflector can also be combined with other connectors Please contact us for more
• Reflector interface is adapted to the mixing cone of the connector
• Possibly visually disruptive openings of the connector are partly covered

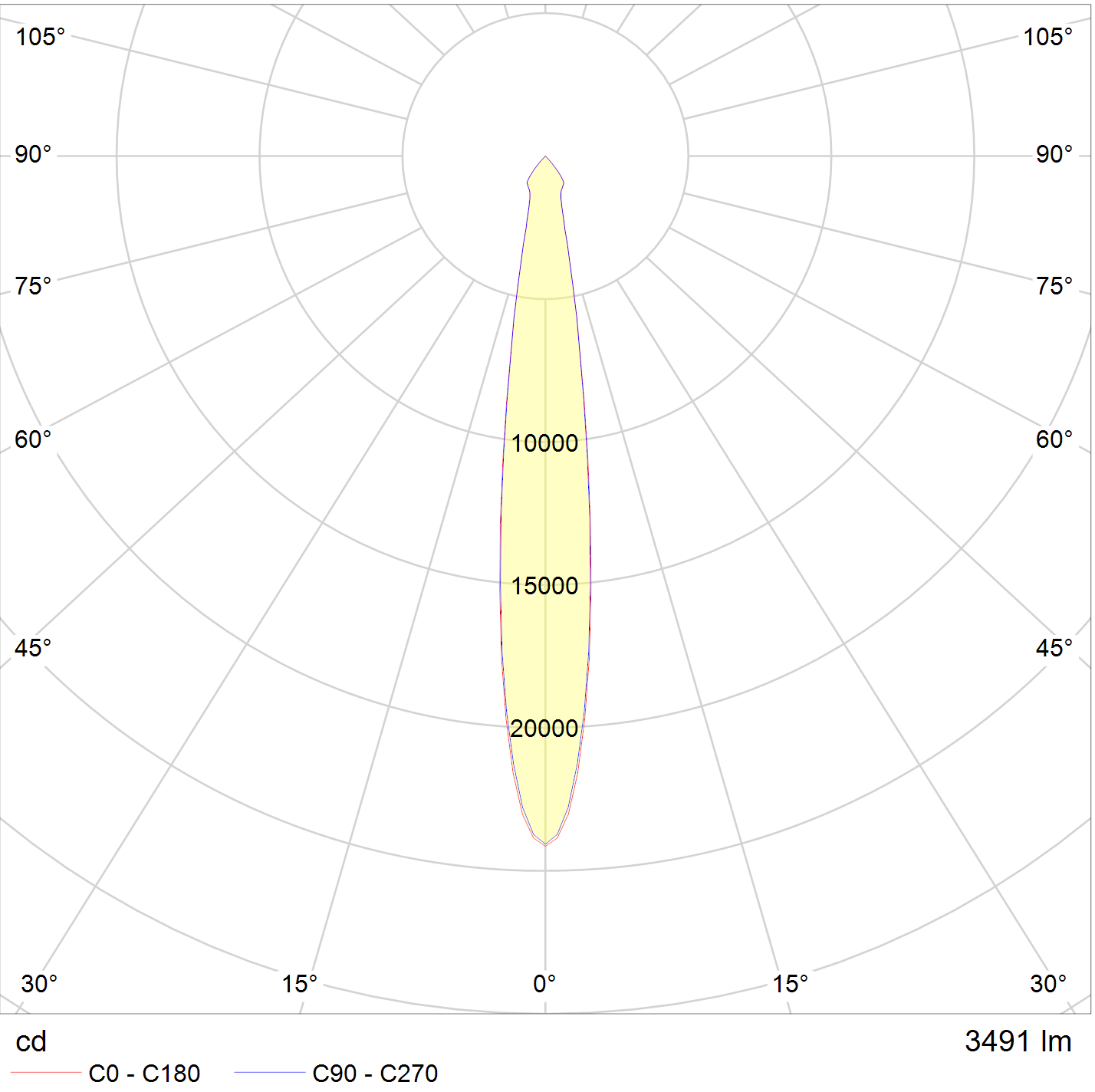

Beam angle (FWHM) measured with Citizen CLU038 and connector 47.319.2025.50.
We recommend the use of COBs with LES < 17 mm
Beam angle depends on used COB and its LES.

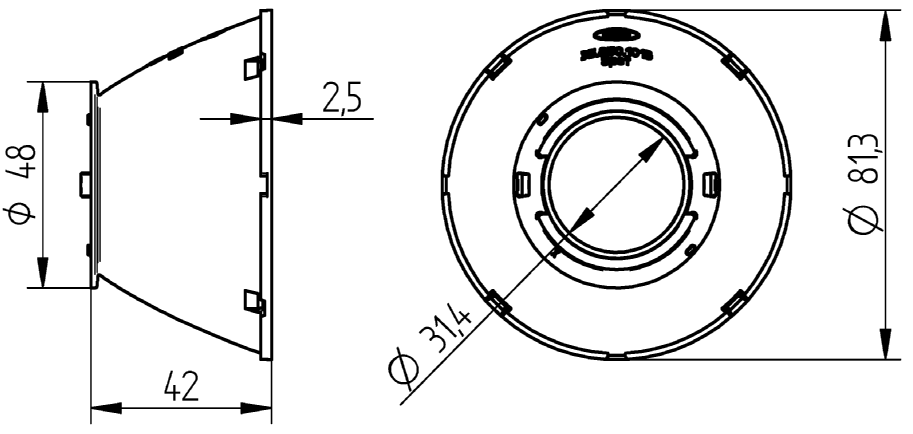

| Height: | 42.mm |
|---|---|
| Light Distribution: | Spot |
| Material: | PC, Aluminium coated |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | max. 100 °C |
| Packaging quantity: | 224 |
| Producttype: | OptiSpot Reflectors Ø 81,3 mm |
| Series: | Reflectors Ø 81,3 mm for Spotlight Connectors Ø 50 mm |
| Weight: | 21,5 g |
| mounting method 1: | Bayonet fixing by Twist & Lock action |
| old article number: | 35.850.1013.56 |
