OptiSpot Reflector Ø 92 mm - Medium
Article number:
35.850.1010-0
EAN:
4049853
-
Medium
-
Product information "OptiSpot Reflector Ø 92 mm - Medium"

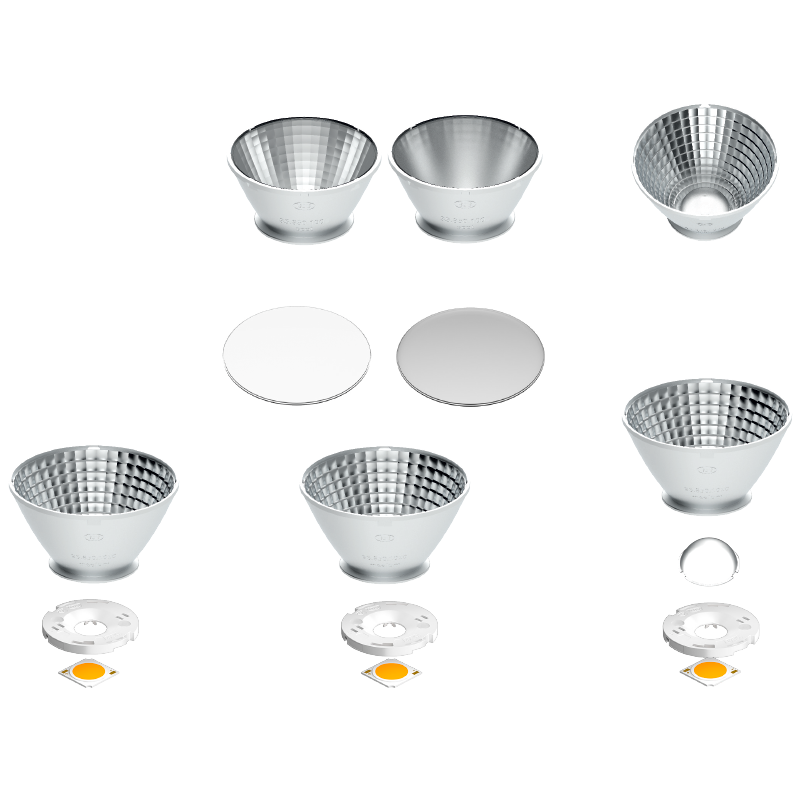

Reflector is optimized for use with connectors 47.319.2013 / 2021 / 2025 / 2026 / 2345 and 47.360.5010 with Ø 50 mm.

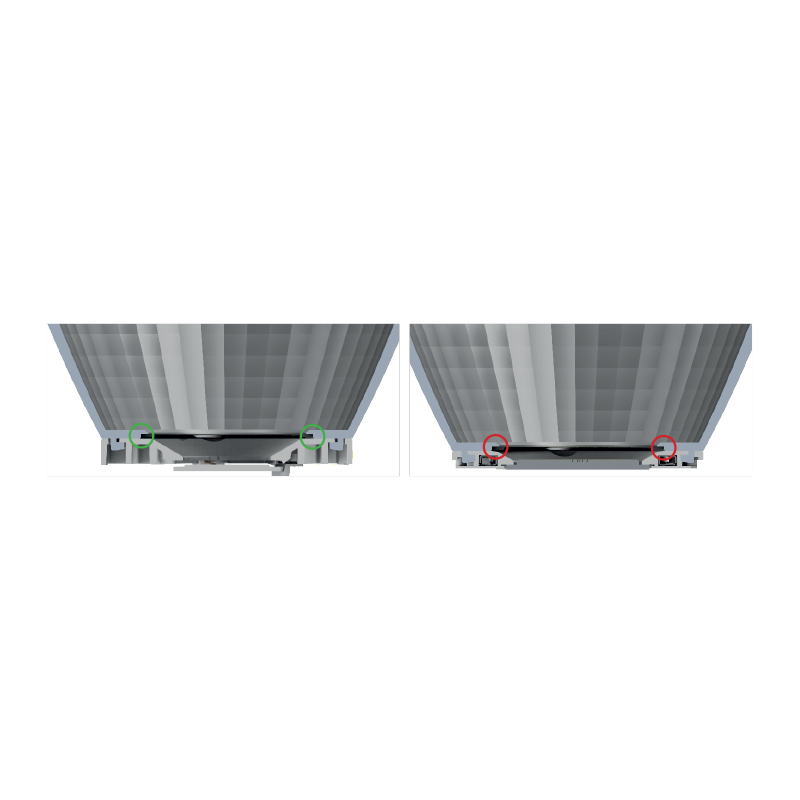

• Reflector interface is adapted to the mixing cone of the connector
• Possibly visually disruptive openings of the connector are partly covered
Recommended for COB's with LES < 17 mm.

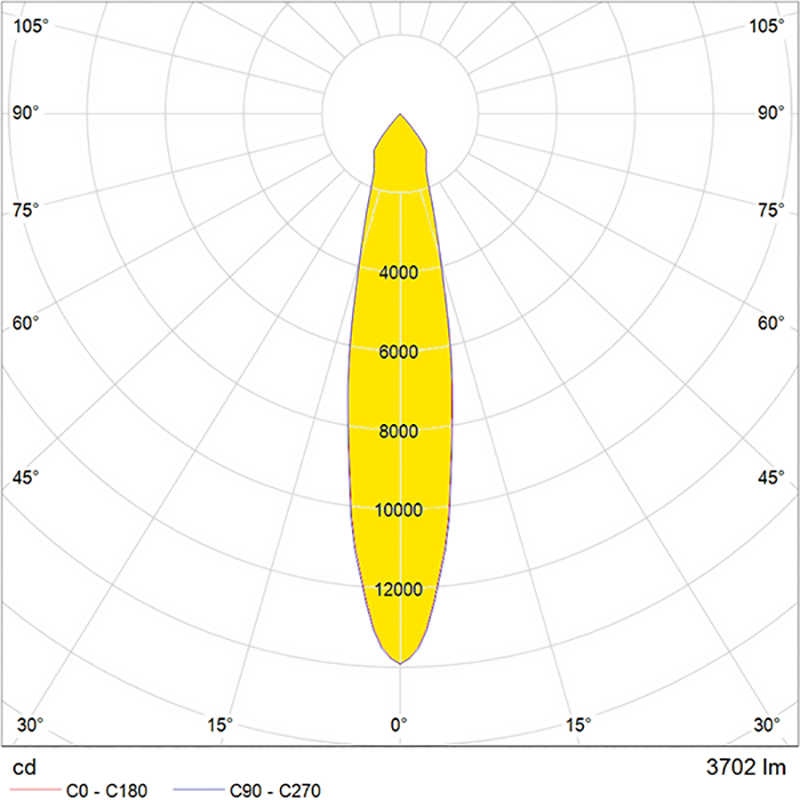

Beam angle (FWHM) measured with Citizen CLU38 and connector 47.319.2025.
Beam angle depends on used COB and its LES.
| Light Distribution: | Medium |
|---|---|
| Material: | PC, Aluminium coated |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Packaging quantity: | 192 |
| Producttype: | OptiSpot Reflectors Ø 92 mm |
| Series: | Reflectors Ø 92 mm for Spotlight Connectors Ø 50 mm |
| Weight: | 35 g |
| mounting method 1: | Bayonet fixing by Twist & Lock action |
| old article number: | 35.850.1010.56 |
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|
-
Medium
-

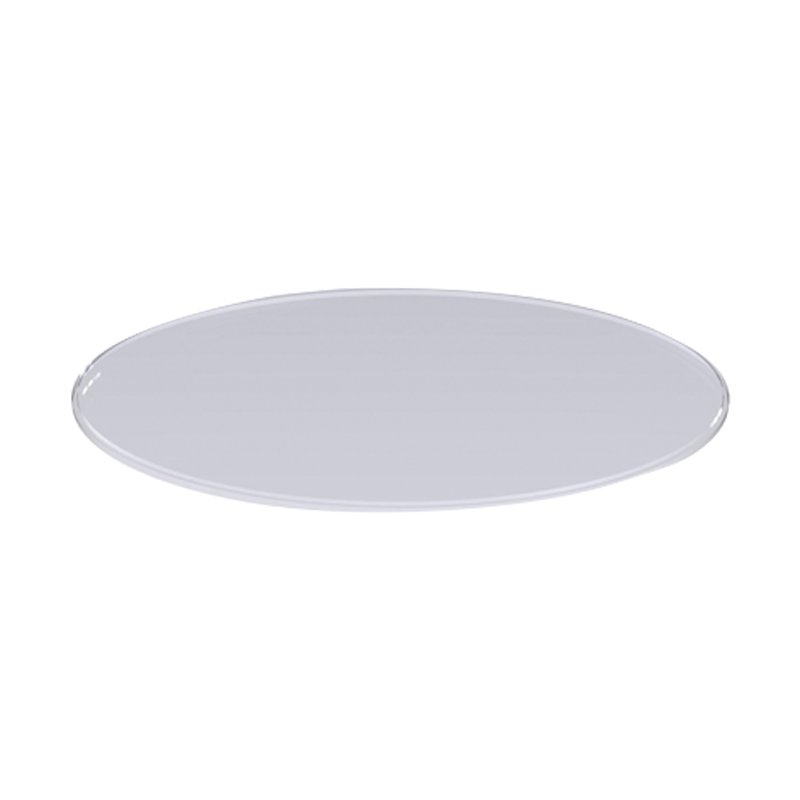

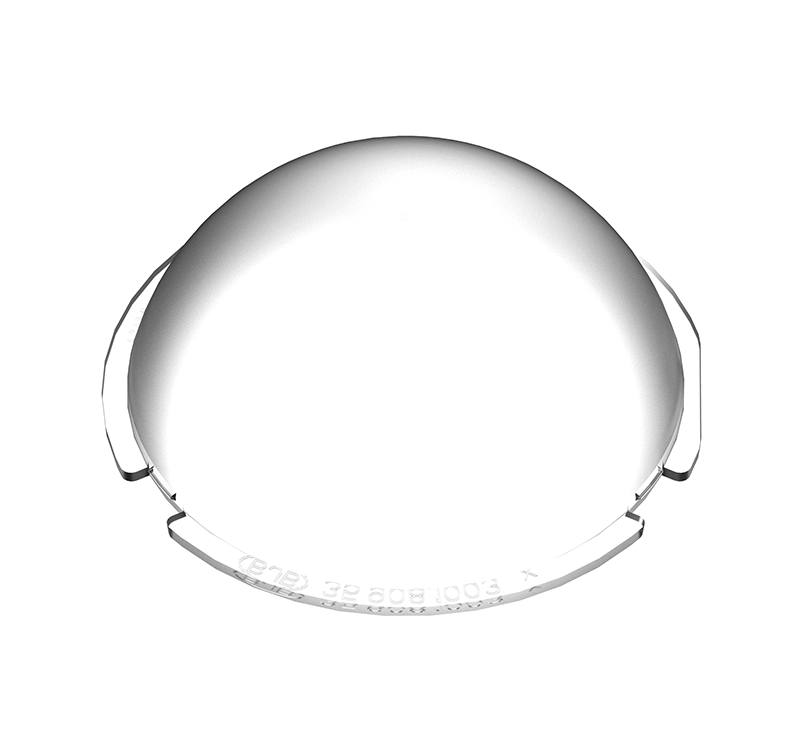

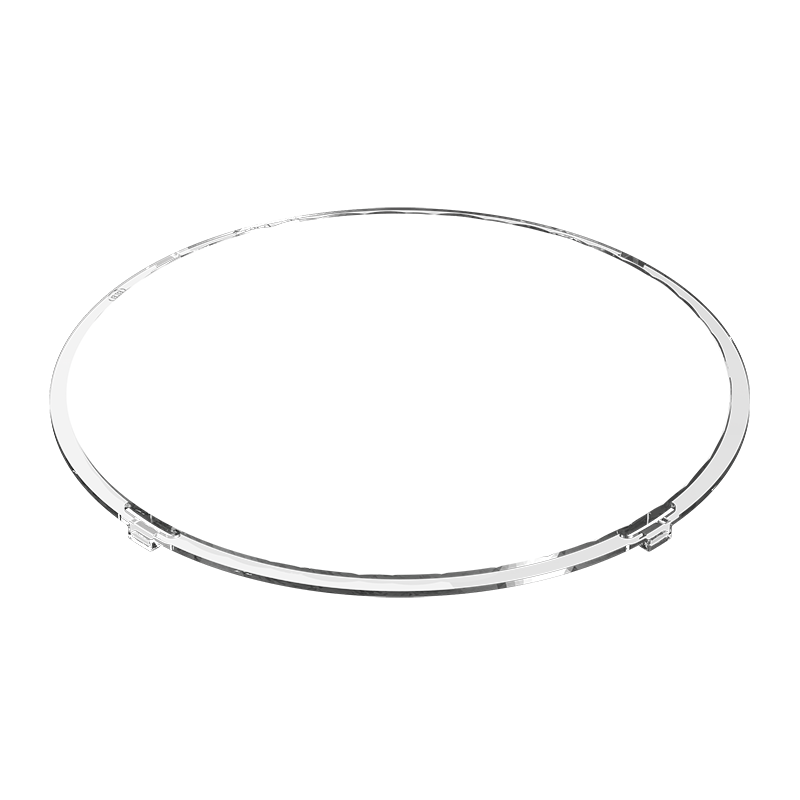

Accessories
