OptiSpot Reflector Ø 92 mm - Wide Flood
Reflector is optimized for use with connectors 47.319.2013 / 2021 / 2025 / 2026 / 2345 and 47.360.5010 with Ø 50 mm.

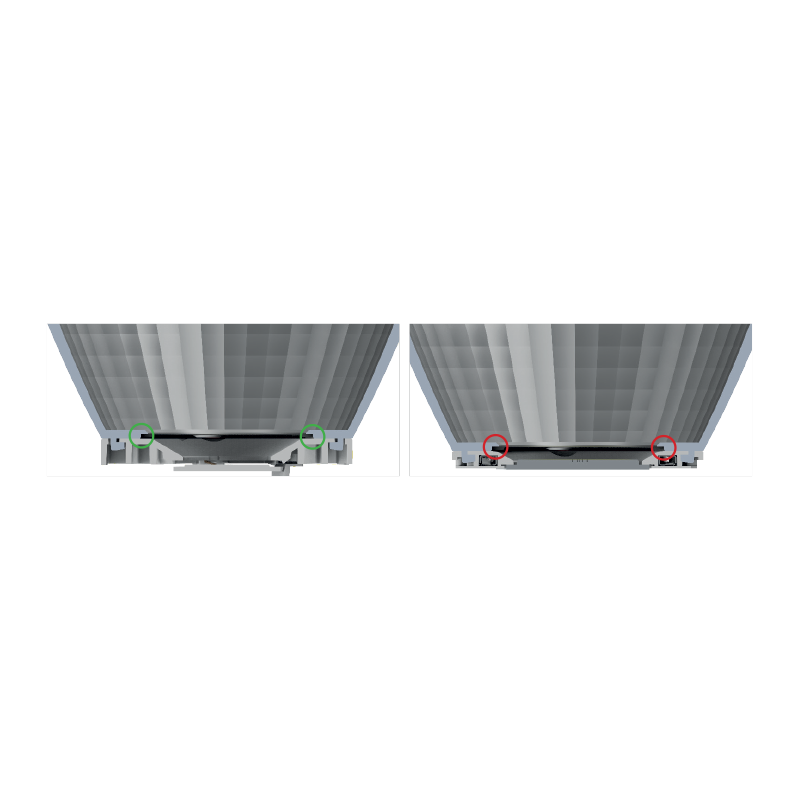

• Reflector interface is adapted to the mixing cone of the connector
• Possibly visually disruptive openings of the connector are partly covered
Recommended for COB's with LES < 17 mm.

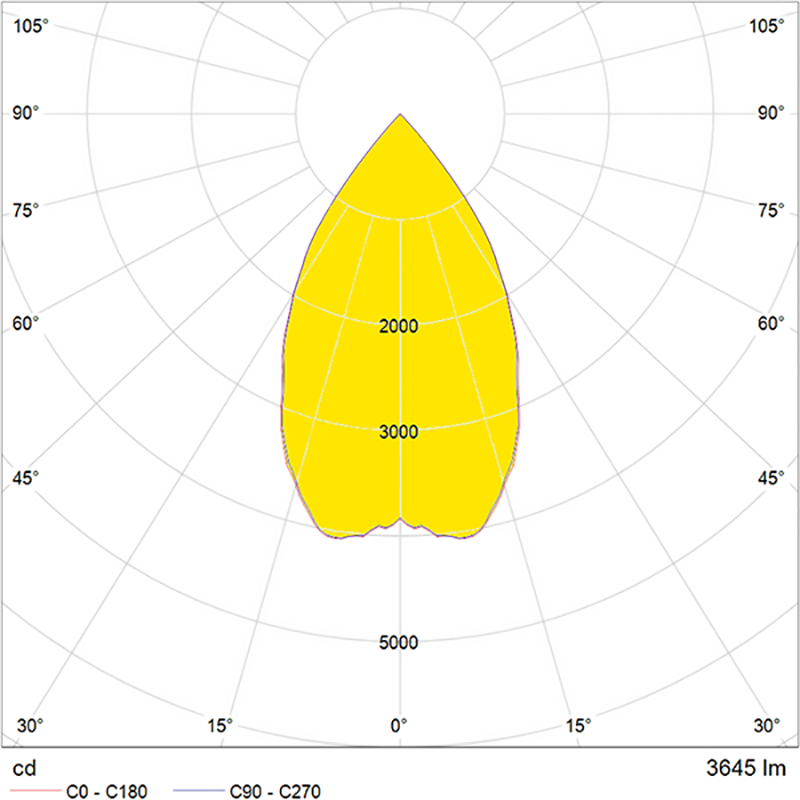

Beam angle (FWHM) measured with Citizen CLU38 and connector 47.319.2025.
Beam angle depends on used COB and its LES.
Light Distribution: | Wide Flood |
---|---|
Material: | PC, Aluminium coated |
Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
Packaging quantity: | 192 |
Producttype: | OptiSpot Reflectors Ø 92 mm |
Series: | Reflectors Ø 92 mm for Spotlight Connectors Ø 50 mm |
Weight: | 32 g |
mounting method 1: | Bayonet fixing by Twist & Lock action |
old article number: | 35.850.1012.56 |
