Receptacle ZB 18 O-ring BJB cut-out for communication and sensor units
Article number:
47.121.U304-0
EAN:
-
-
-40°C to +100°C
-
0.50-1.50 mm²AWG 16-20
-
-
Zhaga Book 18
-
0.50-1.50 mm²AWG 16-20
-
2.0 - 6.0 mm
-
-
8.0 + 1 mm
-
Product information "Receptacle ZB 18 O-ring BJB cut-out for communication and sensor units"

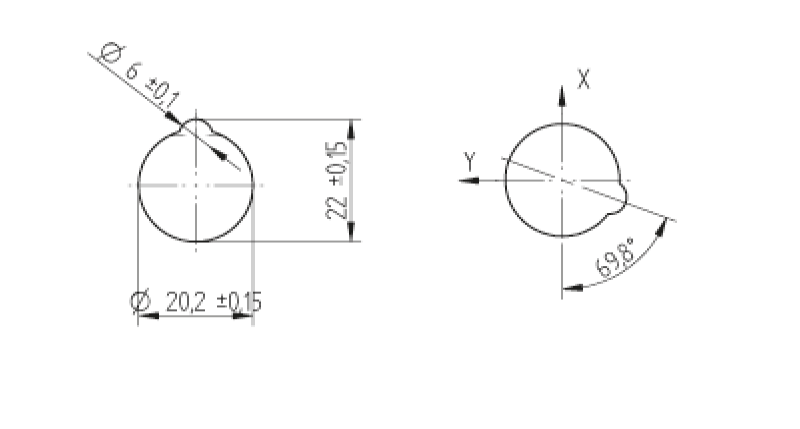

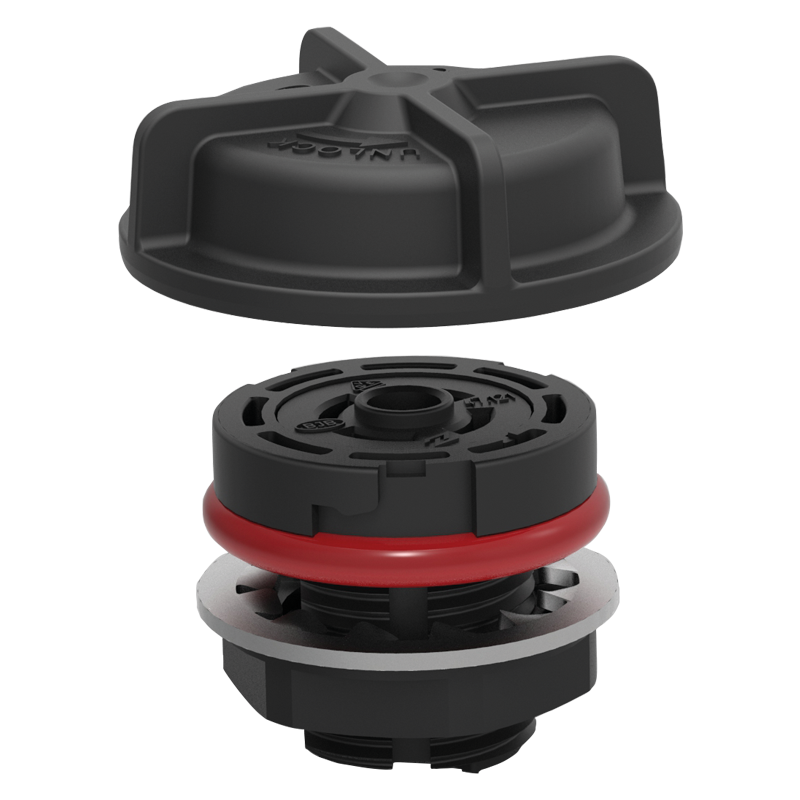

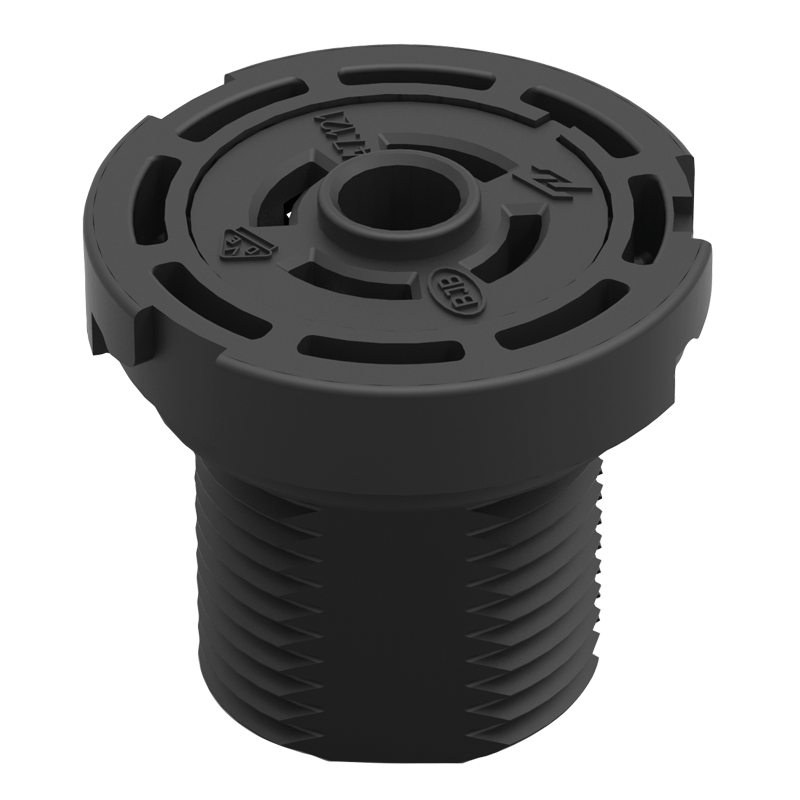

Receptacle 47.121.U304 for communication and sensor units for O ring seal and BJB metal sheet cut-out
Electromechanical interface for outdoor luminaires according to Book 18 to accommodate communication and sensor units

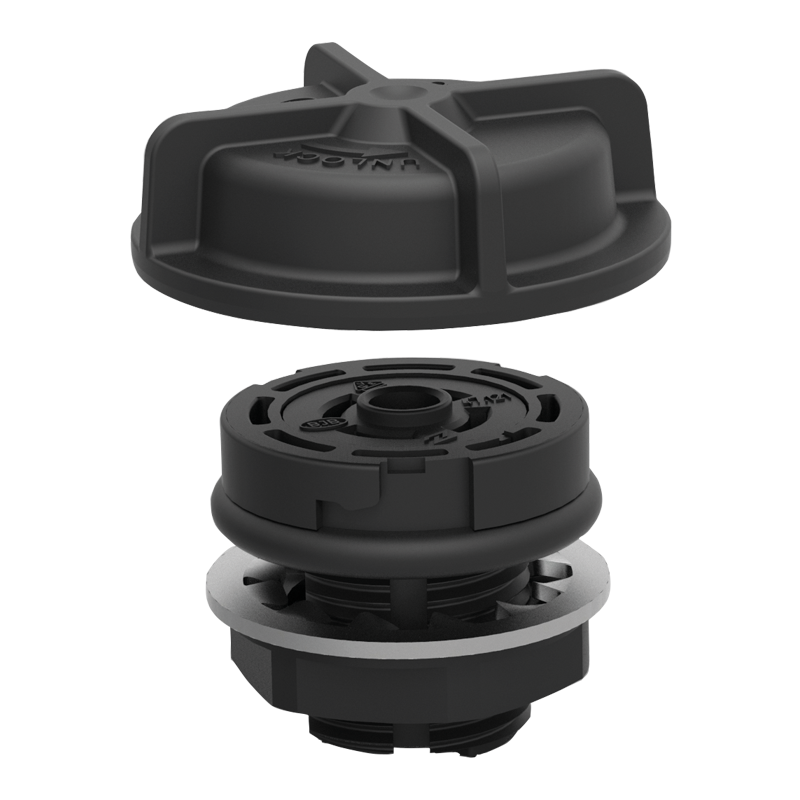

Receptacle 47.121.U034 for BJB metal sheet cut-out

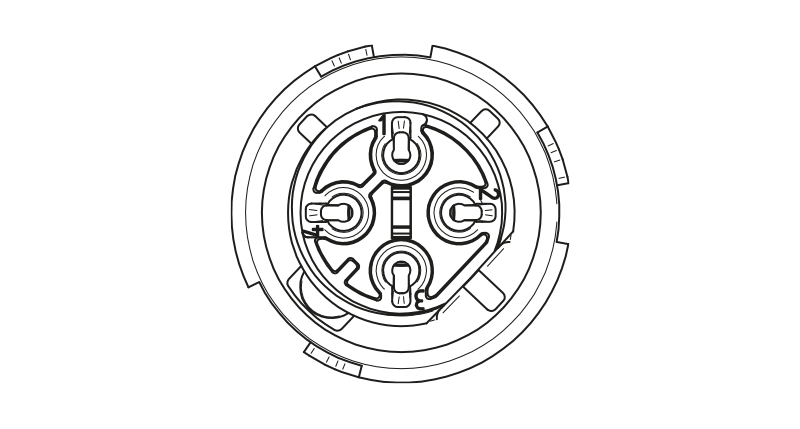

4 pole
Area of application:
- Street and area lighting (parking areas and footpaths)
- outdoor lighting
- wall lights
Highlights:
- IP-compliant connector and cap
- Compact design for flexible mounting position in luminaire housing
- Approved and certified according to VDE DIN EN 61984
| Ausführung: | according to Zhaga Book 18 |
|---|---|
| BJB Data Share: | https://share.bjb.com/index.php/s/FXR4ibo9FW2qNq9 |
| Color: | black |
| Conductor cross-section: | Leitung flexibel verzinnt / Flexible, tinned wires: 0.5 - 1.5 mm², Leitung starr / Rigid wires: 0.5 - 1.5 mm², AWG 16-20 |
| Diameter: | 30.0 mm |
| Height: | 28,4 mm - Gewinde 18,5 mm |
| Height (build in): | 10 mm height above the luminaire |
| IK impact strength grade: | IK09 |
| Insulation: | max. 3 mm insulation diameter |

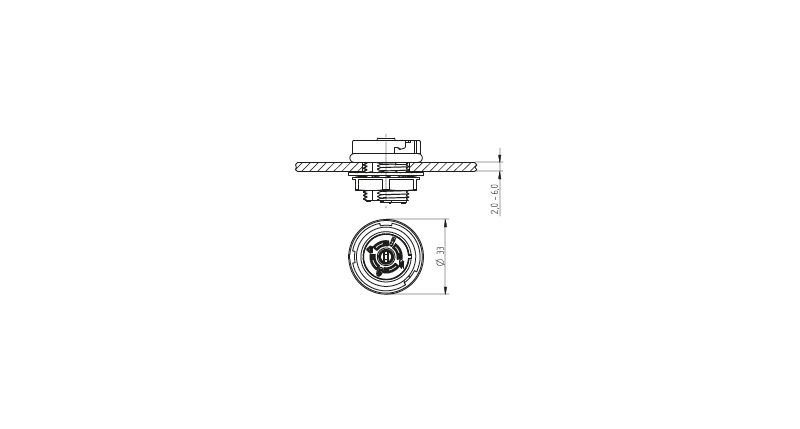

| Luminaire wall thickness: | max. 6.0 mm |
| Material: | Contacts: CuSn - Housing: PBT / PC |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating current: | 2 A |
| Operating temperature: | -40°C up to +100°C |
| Operating voltage: | 24 V DC |
| Other: | Receptacle Zhaga Book 18 with attached flat seal for standardised metal sheet cut-out for communication and sensor units |
| Packaging quantity: | 200 |
| Producttype: | Receptacle - the basis for outdoor light sensors |
| Protection type: | IP 66 |
| Rating: | 2.0 A, 24V |
| Series: | Receptacle - the basis for outdoor light sensors |
| Thread: | M20 x 1.5 mm |
| Utilityfilm Link: | https://www.youtube.com/watch?v=5gH1PGNZ0LI |
| Wire length: | Stripping length 7 - 9 mm |
| mounting method 1: | Screw fastening with O-seal, lock washer and lock nut |
| old article number: | 47.121.U304.80 |
