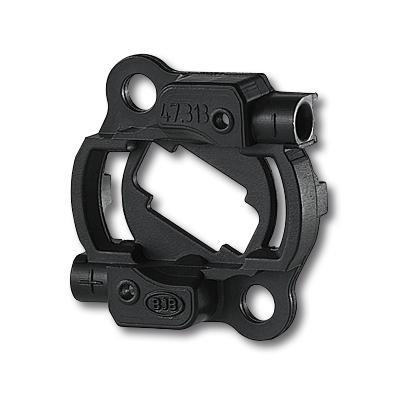

STARboard Connector for DRAGON-X 120 LED
Article number:
47.313.1101-0
EAN:
-
-
-
-
0,25 - 0,5 mm²
-
0,5 mm²
-
Product information "STARboard Connector for DRAGON-X 120 LED"

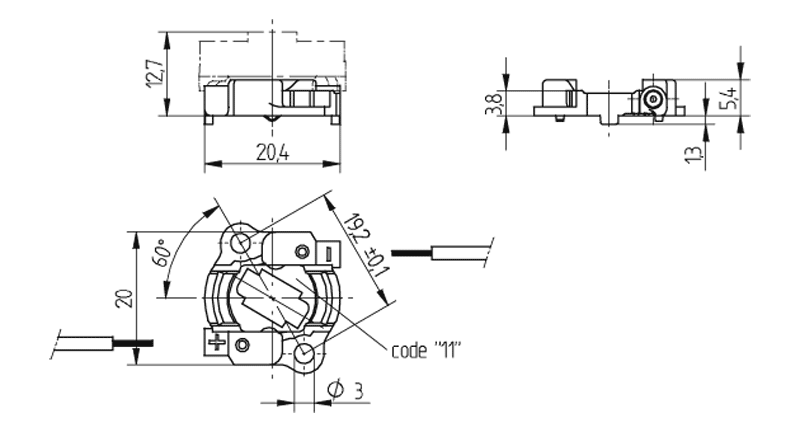

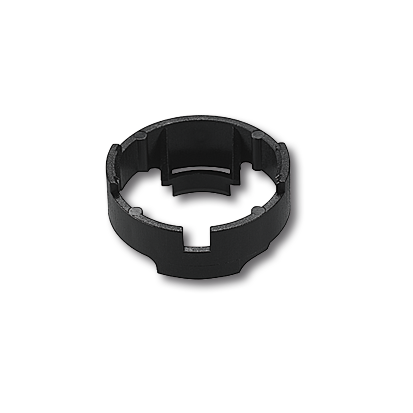

For use with holder for optical systems 47.313.-3xx
Screw mounting: for screws M3 and locking washer
Max. torque for screw fixing 0.5 Nm*
Strip length: 6+1 mm
Test ports
Polarity of LED must be observed
Specifications of LED manufacturer must be observed
VDE-Reg - no. D060
*Please note the max torque of the COB manufacturer
Screw mounting: for screws M3 and locking washer
Max. torque for screw fixing 0.5 Nm*
Strip length: 6+1 mm
Test ports
Polarity of LED must be observed
Specifications of LED manufacturer must be observed
VDE-Reg - no. D060
*Please note the max torque of the COB manufacturer
| Certification Mark: | VDE CERTIFICATE OF CONFORMITY WITH FACTORY SURVEILLANCE EN 60838-1 |
|---|---|
| Color: | black |
| Conductor cross-section: | 0.5 mm² |
| Country of origin: | DE |
| LED?: | intended for the use of COBs |
| Material: | Housing: PBTContacts: CuSn |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Operating temperature: | max. 110°C |
| Packaging quantity: | 250 |
| Pre-centering for COB: | No |
| Producttype: | Connectors for Starboards and Accessories |
| Series: | Starboard Connectors - 47.313 |
| Stranded, tinned wires: | 0.25 - 0.5 mm² |
| Suitable for: | With centering for LED DRAGON-X 120° from OSRAM |
| Type of packaging: | Tray |
| UL: | yes |
| Weight: | 1 g |
| cURus file no.: | E-345385 |
| mounting method 1: | Screw mount |
| old article number: | 47.313.1101.80 |
Available Downloads
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 47.313.1101-0 | cURus,_gültig_für_USA_und_Kanada-cURus_(USA_and_Kanada)3437952 | ||
| 47.313.1101-0 | Genehmigung_liegt_vor-Approval_at_hand5665445 | ||
| 47.313.1101-0 | ÜG_Überwachungsgutachten-Certificate_of_Conformity2760852 |
Suitable for the following LED types
| LED manufacturer | LED designation | More information |
|---|---|---|
| OSRAM Opto Semiconductors | DRAGON-X 120° | www.osram-os.com |
-
-
-
0,25 - 0,5 mm²
-
0,5 mm²
-
