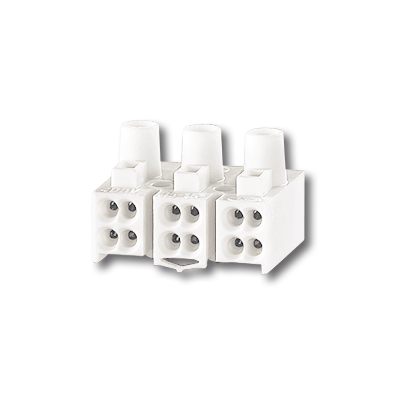

Terminal block 3 poles
Article number:
48.212.0300-0
EAN:
4049853
-
-
-
-
-

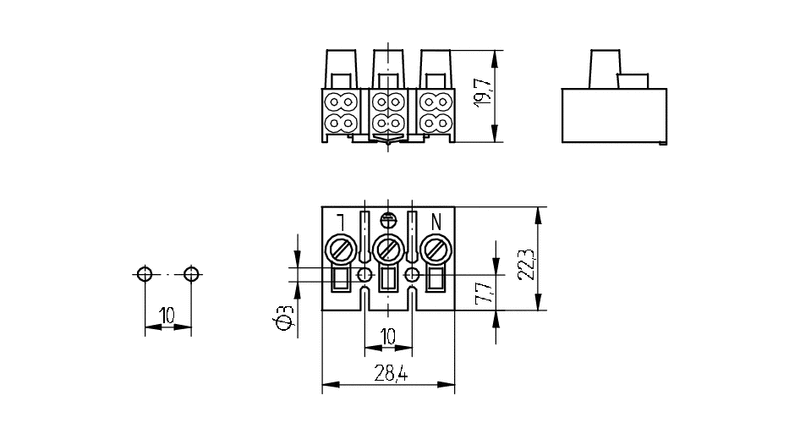

ø 3,4
Product information "Terminal block 3 poles"
Screw / pushwire terminals
Nominal cross section: 1.5 mm²
Pushwire terminals: 0.5 - 1.5 mm²
Screw terminals will also accept wires with ferrule
Nominal cross section: 1.5 mm²
Pushwire terminals: 0.5 - 1.5 mm²
Screw terminals will also accept wires with ferrule
| Color: | natural colour |
|---|---|
| Lettering: | N ⏚ L |
| Material: | Housing: PA 6.6 |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Number of poles: | 3 |
| Packaging quantity: | 1000 |
| Producttype: | 3 pole - screw / push-wire terminals |
| Screw terminals: | ø 3.4 |
| Series: | Screw / push-wire terminals |
| Weight: | 8 g |
| mounting method 1: | Screw mount |
| old article number: | 48.212.0300.51 |
Available CAD Downloads
Certifications
| Article Number | Status | Description | Documents |
|---|---|---|---|
| 48.212.0300-0 | Genehmigung_liegt_vor-Approval_at_hand4070828 | ||
| 48.212.0300-0 | Genehmigung_liegt_vor-Approval_at_hand718207 | ||
| 48.212.0300-0 | Genehmigung_liegt_vor-Approval_at_hand749986 |
-
-
-
-
-
ø 3,4
