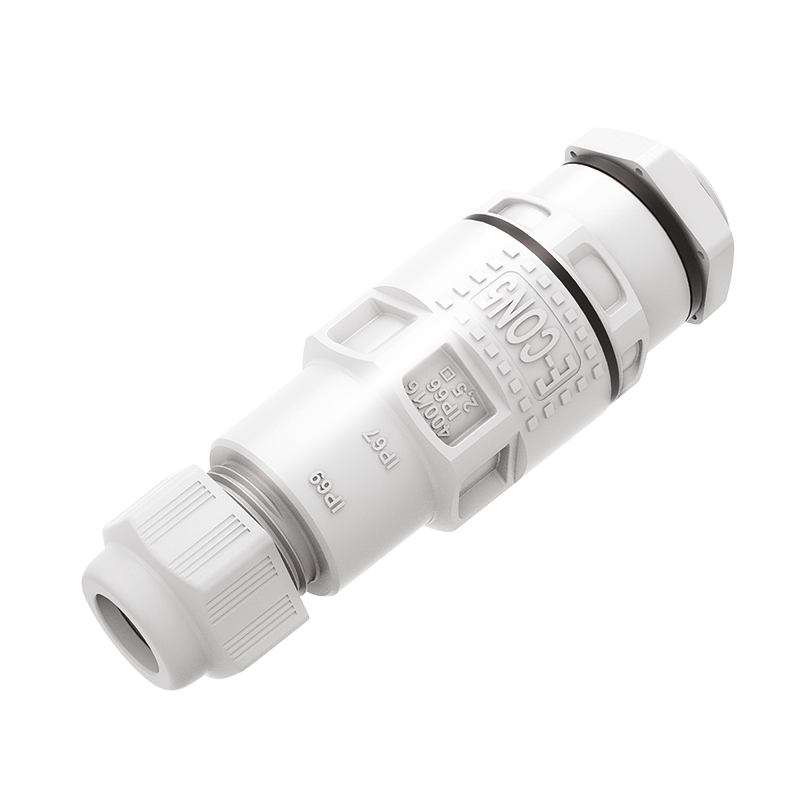

Terminal Block System IP E-CON 2 waterproof New
Article number:
46.480.A001-0
EAN:
4049853
-
-
IP 65/67/69
-
int. 0.5 - 1.5 / 0.5 - 2.5 mm²; ext. 1.5 - 2.5 mm²
-
-25 C° to +60 C°
Product information "Terminal Block System IP E-CON 2 waterproof"
E-CON Terminal Block System for quick, safe installation, reliable and energy efficient operation
Benefits:
• Ingress protection IP66, IP67, IP69
• reliable
• quick connection
• easy assembly
• robust
• doesn't bend
• ready for use

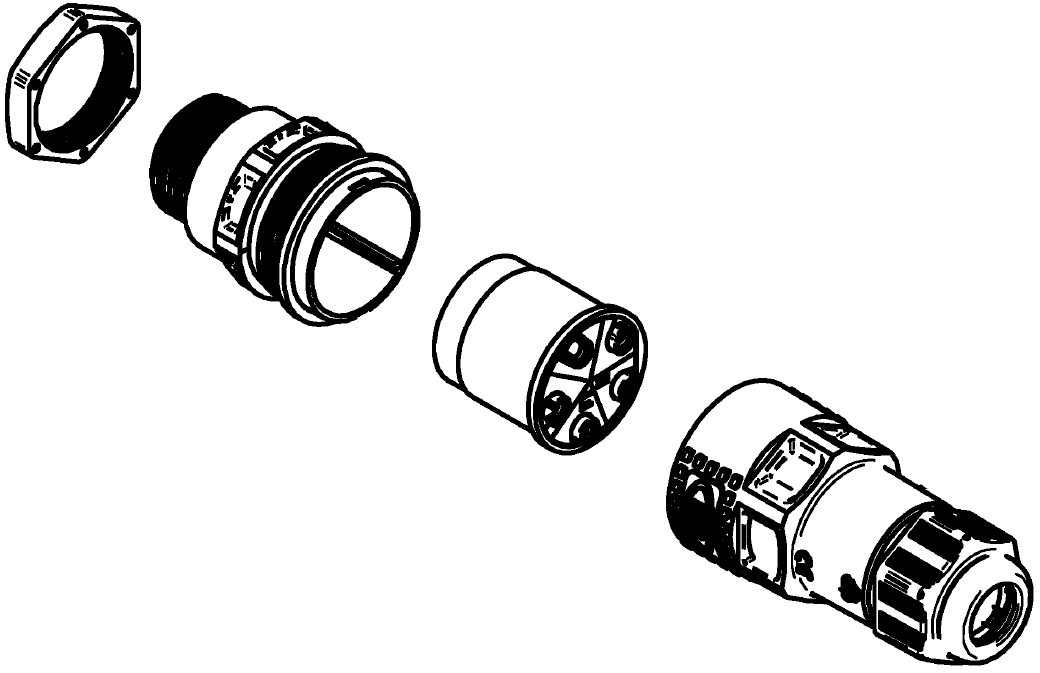

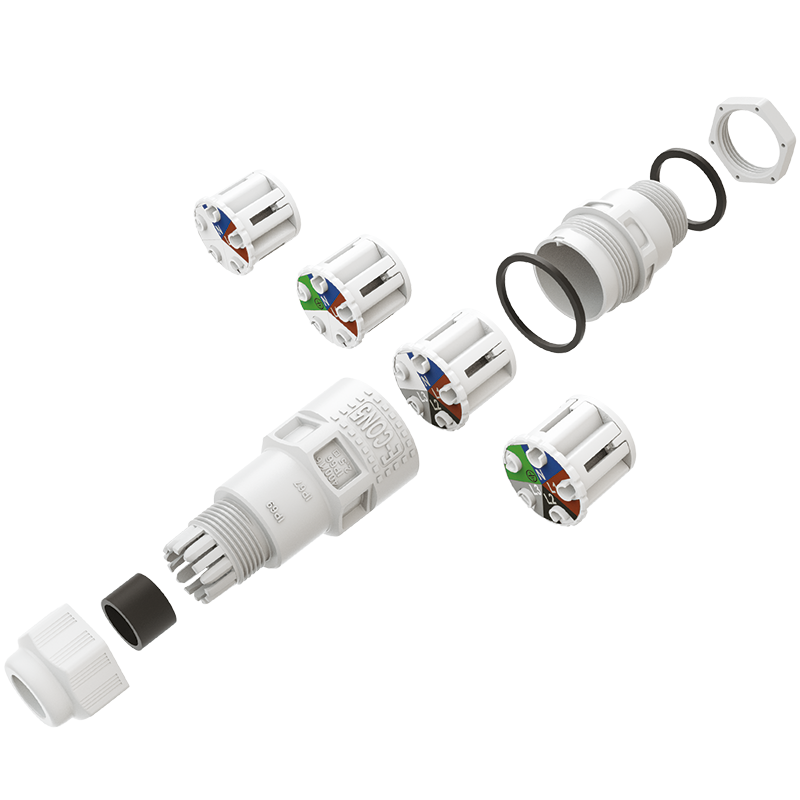

Article numbers of single parts per box:
Plastic nut - 46.480.A013-0
Counterpart E-CON - 46.480.A014-0
Terminal block E-CON 2 - 46.480.A009-0
Housing E-CON 2 - 46.480.A005-0
| Certification Mark: | ENEC21 Certificate |
|---|---|
| Certification Status: | active |
| Color: | gray |
| Conductor cross-section: | Core cross-section of int. wire: 0,5 - 1,5 / 0,5 - 2,5 mm²; Core cross-section of ext. wire: 1,5 - 2,5mm² |
| Diameter: | 34,5 mm |
| IP-Protection type: | IP66, IP67, IP69 |
| Length: | 104 mm |
| Material: | Housing: PA / Contact material: spring steel, cooper |
| Note warranty conditions: | *Warranty conditions of BJB GmbH & Co. KG as stated as available via the Internet under https://www.bjb.com/en/legal-information/general-terms-and-conditions/ are valid. |
| Number of poles: | 2 |
| Operating current: | 16 A |
| Operating voltage: | 400 V |
| Packaging quantity: | 200 |
| Producttype: | IP Connector Systems |
| Protection class: | II |
| Series: | IP Terminal Block System |
| Table for product detail view: | 1 |
| Temperature: | -25°C to 60°C ambient temperature |
| Weight: | 44,09 g |
| Wires: | Solid |
